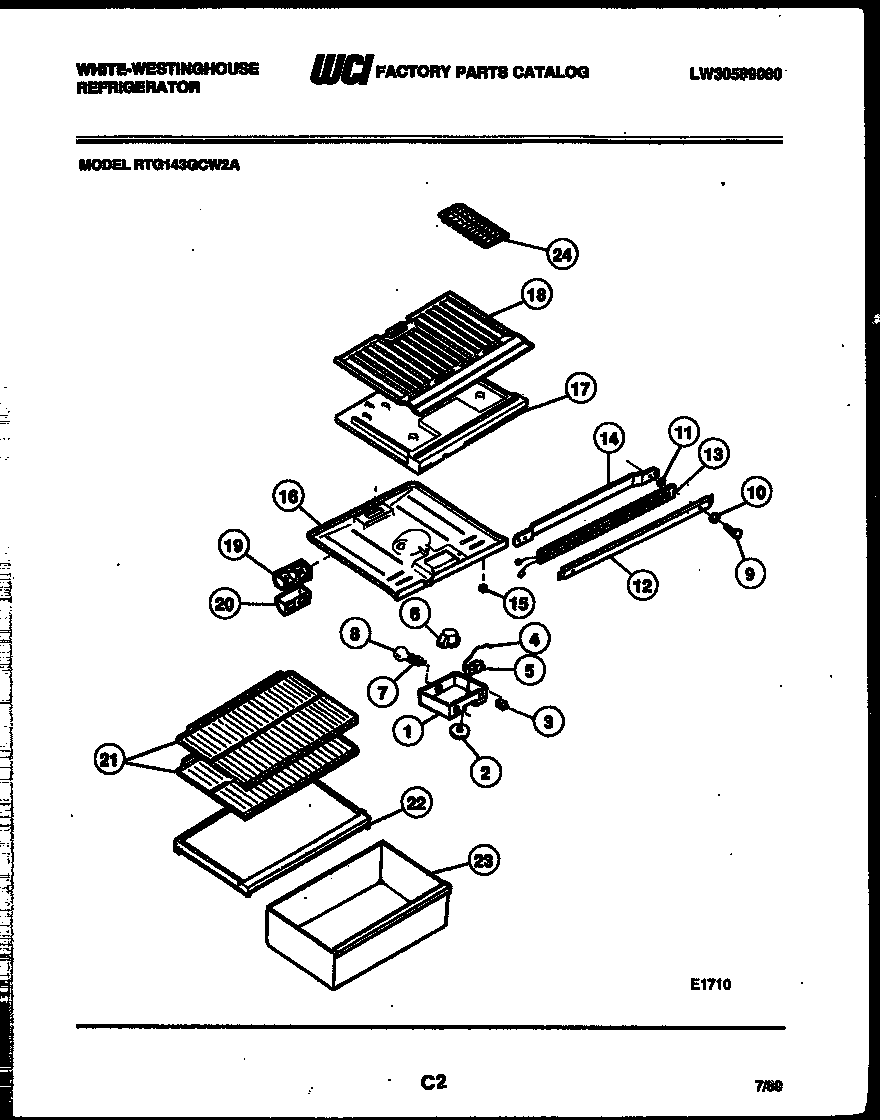

RTG143GCD2A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1ALABEL-CONTROL BOX
1WCI G174765-03
1C5304455650 Frigidaire Refrigerator Screw
1BPLUG BTN (NON-ILLUSTRATED)
2KNOB-TEMP CONTROL
3WCI G178402-02
4TUBE
5CONTROL-COLD
5AWCI G107080
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7SOCKET LIGHT
8316538904 Frigidaire Oven Lamp Light
9SCREW, BRACKET MOUNTING (4)
10WASHER (2)
11SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
12WCI 3916134
13WCI G187921
14CLAMP, MULLION MOUNTING
155309918806 Frigidaire Refrigerator Light Switch Door
16TOP-REFRIGERATOR
16ASCREW (5)
17AHARNESS, WIRING
17DIVIDER-COMPARTMENT
18BOTTOM ( FREEZER )
18APAD, FOAM (2)
19DEFLECTOR AIR
20WCI G162178
21SHELF-SLIDING (2)
22COVER
23WCI G162973-34
24215667501 Frigidaire Refrigerator Ice Tray Primary
