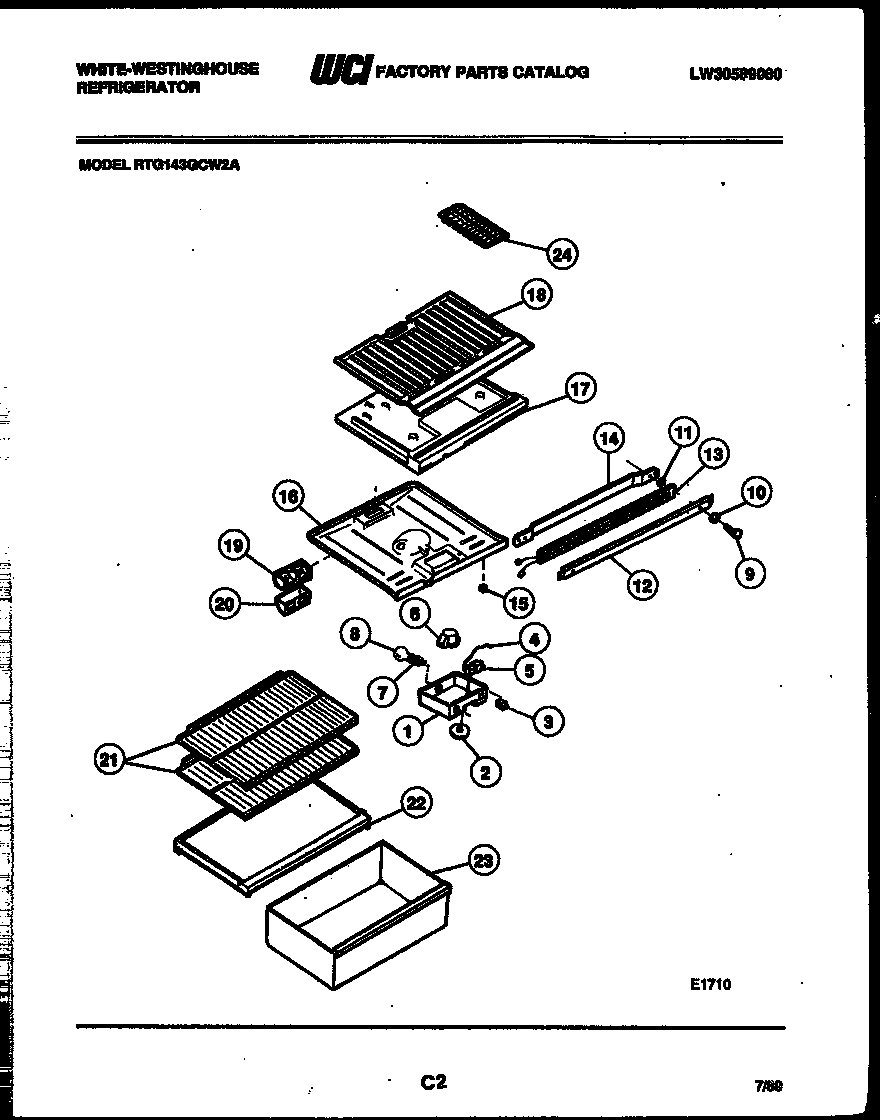

RTG143GCH2A 04 – SHELVES AND SUPPORTS

Products

Position	Product
1A	LABEL-CONTROL BOX
1	WCI G174765-03
1C	5304455650 Frigidaire Refrigerator Screw
1B	PLUG BTN (NON-ILLUSTRATED)
2	KNOB-TEMP CONTROL
3	WCI G178402-02
4	TUBE
5	CONTROL-COLD
5A	WCI G107080
6	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A	5304455649 Frigidaire Refrigerator Screw
7	SOCKET LIGHT
8	316538904 Frigidaire Oven Lamp Light
9	SCREW, BRACKET MOUNTING (4)
10	WASHER (2)
11	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
12	WCI 3916132
13	WCI G187921
14	CLAMP, MULLION MOUNTING
15	5309918806 Frigidaire Refrigerator Light Switch Door
16A	SCREW (5)
16	TOP-REFRIGERATOR
17	DIVIDER-COMPARTMENT
17A	HARNESS, WIRING
18	BOTTOM ( FREEZER )
18A	PAD, FOAM (2)
19	DEFLECTOR AIR
20	WCI G162178
21	SHELF-SLIDING (2)
22	COVER
23	WCI G162973-34
24	215667501 Frigidaire Refrigerator Ice Tray Primary
