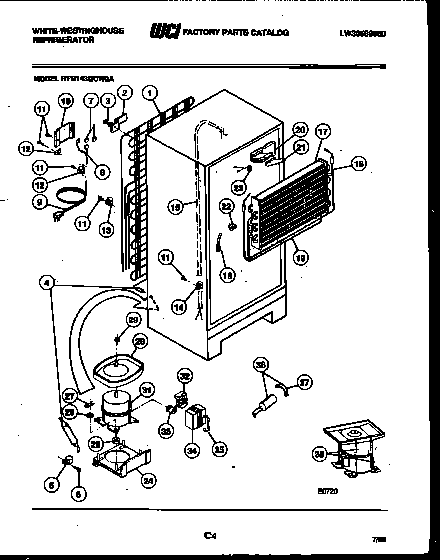

RTG143GCH2A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

Products

Position	Product
*20772	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1	WCI G178225
2	BRACKET-CONDENSER MOUNTING (4)
3	5308000039 Frigidaire Refrigerator Screw
3A	WASHER
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 3201679
6	218843801 Frigidaire Refrigerator Screw
7	HARNESS, WIRING
8	HARNESS-COMPRESSOR
9	CORD, SERVICE
10	WCI G183584
11	5304455651 Frigidaire Refrigerator Screw
12	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
13	240396801 Frigidaire Refrigerator Tube Clamp
15	EXCHANGER-HEAT
16	WCI G162432-02
17	EVAPORATOR
18	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
19	INSULATOR
20	BLOCK, EVAPORATOR, RH
21	PLUG, EVAPORATOR INSULATION BLOCK, R H
22	BLOCK, LEFT SIDE
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	WCI G162822
25	218513300 Frigidaire Refrigerator Compressor Mount Grommet
26	WASHER, COMPRESSOR MOUNTING (4)
27	CLIP, COMPRESSOR MOUNTING (4)
28A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28	DEFROST PAN & NUT
29	NUT, LOCK
30	PAN RETAINER KIT-SERVICE
31	WCI 3916004
32	WCI G182225-18
33	WCI G188877
35	5303006412 Frigidaire Refrigerator Cover Mounting Strap
36	CAPACITOR-RUN
37	STRAP-CAPACITOR
