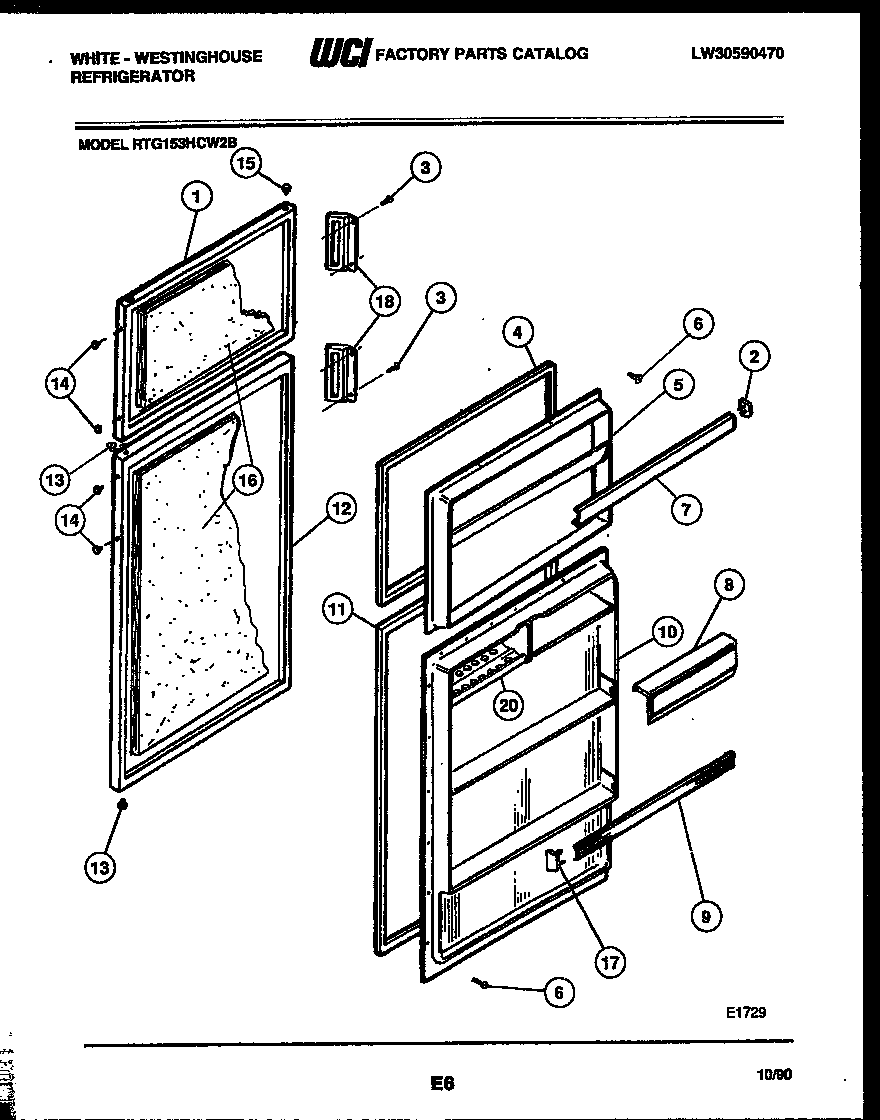

RTG153HCD2B 02 – DOOR PARTS

RTG153HCD2B 02 – DOOR PARTS

Written by

in

RTG153HCD2B 02 – DOOR PARTS

Products

PositionProduct
1WCI 5318752811
2WCI 5317689101
3SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
4WCI 5303001399
5WCI 5318646301
6218843801 Frigidaire Refrigerator Screw
8WCI 5318641402
9DOOR RACK – REFRIGERATOR (2)
10WCI 5318646902
11GASKET-REFRIGERATOR
12WCI 5318752911
13BEARING-HINGE
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PLUG-BUTTON, ALMOND, HINGE BRG HOLE
16INSULATION-BULK (NON-ILLUSTRATED)
17WCI 5317689201
18WCI 3016496
20215817806 Frigidaire Refrigerator Egg Tray
