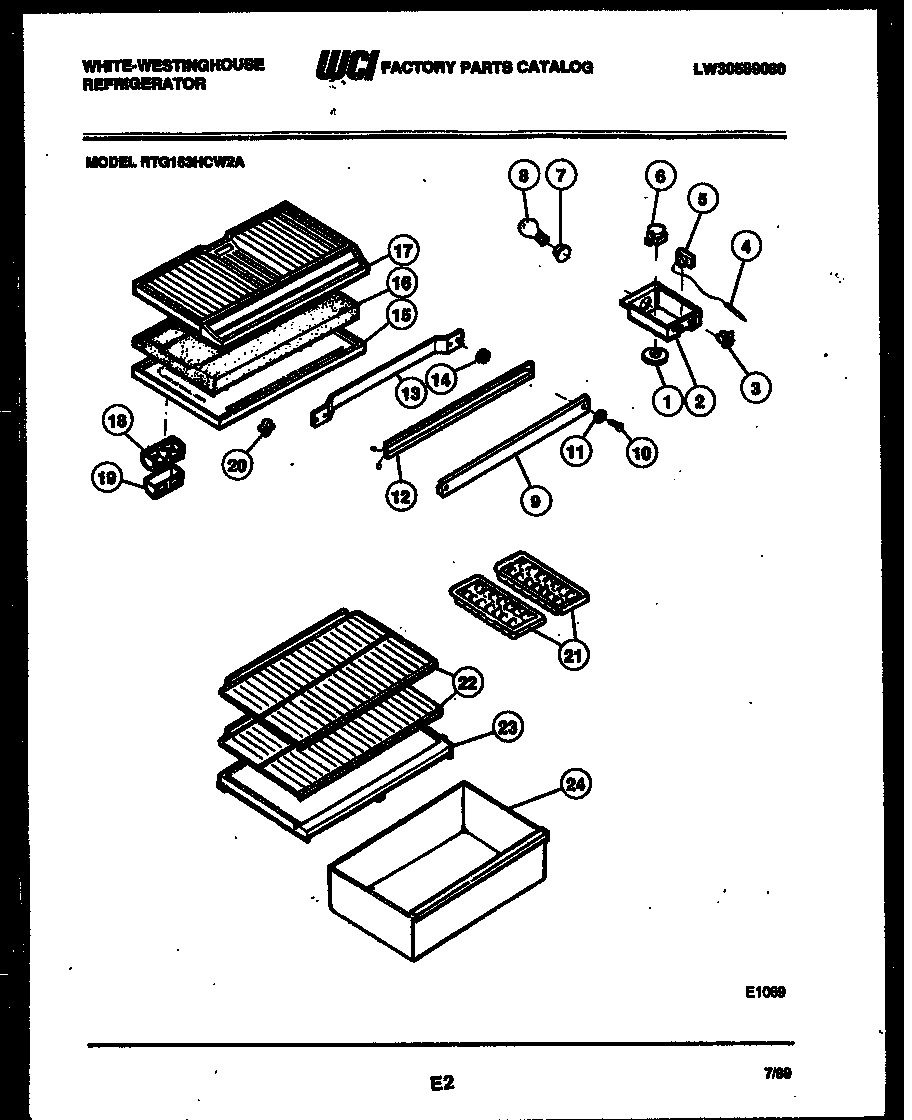

RTG153HCH2A 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	KNOB-TEMP CONTROL
2A	LABEL-CONTROL BOX
2	WCI G174765-03
2C	5304455650 Frigidaire Refrigerator Screw
2B	PLUG BTN (NON-ILLUSTRATED)
3	WCI G178402-02
4	TUBE
5	CONTROL-COLD
5A	WCI G107080
6	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A	5304455649 Frigidaire Refrigerator Screw
7	SOCKET LIGHT
8	316538904 Frigidaire Oven Lamp Light
9	WCI 3916132
10	SCREW, BRACKET MOUNTING (4)
11	WASHER (2)
12	WCI G187921
13	CLAMP, MULLION MOUNTING
14	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
15A	SCREW (5)
15	TOP-REFRIGERATOR
16A	HARNESS, WIRING
16	DIVIDER-COMPARTMENT
17	BOTTOM ( FREEZER )
18	DEFLECTOR AIR
19	WCI G162178
20	5309918806 Frigidaire Refrigerator Light Switch Door
21	215667501 Frigidaire Refrigerator Ice Tray Primary
22	SHELF-SLIDING (2)
23	COVER
24	WCI G162973-34
