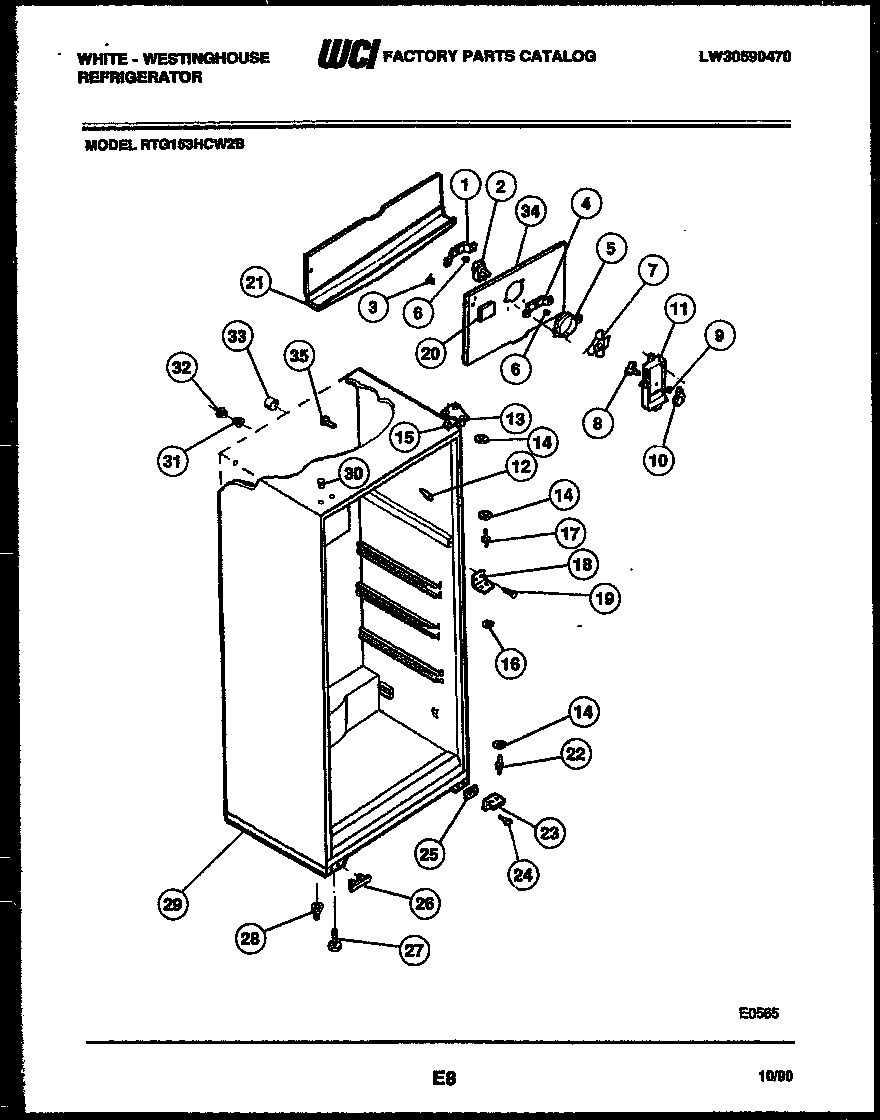

RTG153HCV2B 03 – CABINET PARTS

Products

Position	Product
*38158	PLUG, BUTTON, CABINET LINER (NI)
1	BRACKET-MOTOR MTG, REAR
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI 5308000107
4	WCI 5303205118
5	RING-FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER-FAN COVER
9	Nut,push-on
10	KNOB-DAMPER CONTROL
11A	LABEL-FAN COVER
11	COVER-FAN
12	CORNER TRIM-AVOC
13	BRACKET-UPPER HINGE
14	WASHER, .34 X .62 X .05, NYLON
15	SHIM – UPPER HINGE
16	WASHER, .28 X .62 X .19, NYLON
17	WCI 5308000184
18	BRACKET-CTR HINGE
19	WCI 5308012258
20	BUTTON – DECORATIVE PLUG
21	TROUGH-DRAIN
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	HINGE – LOWER DOOR
24A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
24	241710601 Frigidaire Refrigerator Screw
25	SHIM-LOWER HINGE
26	COVER-HOLE, LOWER HINGE
27A	WCI 5308003584
27	SCREW-LEVELING (4)
28	TUBE – DRAIN
29	WCI 5303006086
30	BUTTON-HINGE-AVOCADO
31	WCI 5303001286
32	WCI 5303001287
33	TUBE-RUBBER
34A	5304455650 Frigidaire Refrigerator Screw
34B	NUT-SPEED (2)
34C	WCI 5303203044
34	WCI 3001358
35	SUPPORT-COIL COVER
