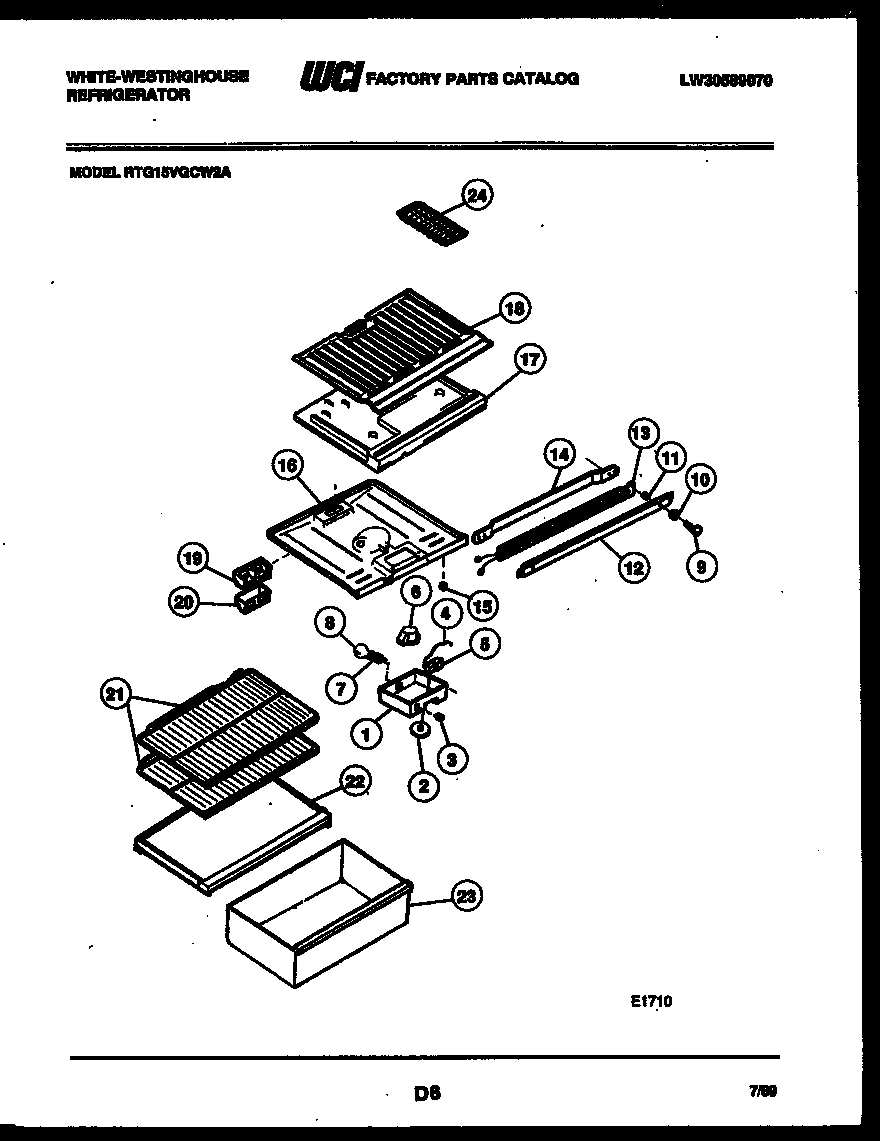

RTG15VGCD2A 04 – SHELVES AND SUPPORTS

RTG15VGCD2A 04 – SHELVES AND SUPPORTS

Written by

in

RTG15VGCD2A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI G176722-02
1B5304455650 Frigidaire Refrigerator Screw
1AWCI G180037
2KNOB
3SWITCH SLIDE
4TUBE
5AWCI G107080
5CONTROL-COLD
6A5304455649 Frigidaire Refrigerator Screw
6WCI G188540
7AWCI G183021
7SOCKET LIGHT
8LIGHT BULB
9SCREW, BRACKET MOUNTING (4)
10WASHER (2)
11SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
11RACK DOOR (3)
12WCI 3916134
13WCI G166635
14CLAMP, MULLION MOUNTING
155309918806 Frigidaire Refrigerator Light Switch Door
16TOP-REFRIGERATOR
16ASCREW (5)
17DIVIDER-COMPARTMENT
17AWIRING HARNESS-CONTROL
18APAD, FOAM (2)
18BOTTOM ( FREEZER )
19DEFLECTOR AIR
20WCI G162178
21SHELF-SLIDING (2)
22COVER
23WCI G162973-34
24215667501 Frigidaire Refrigerator Ice Tray Primary
