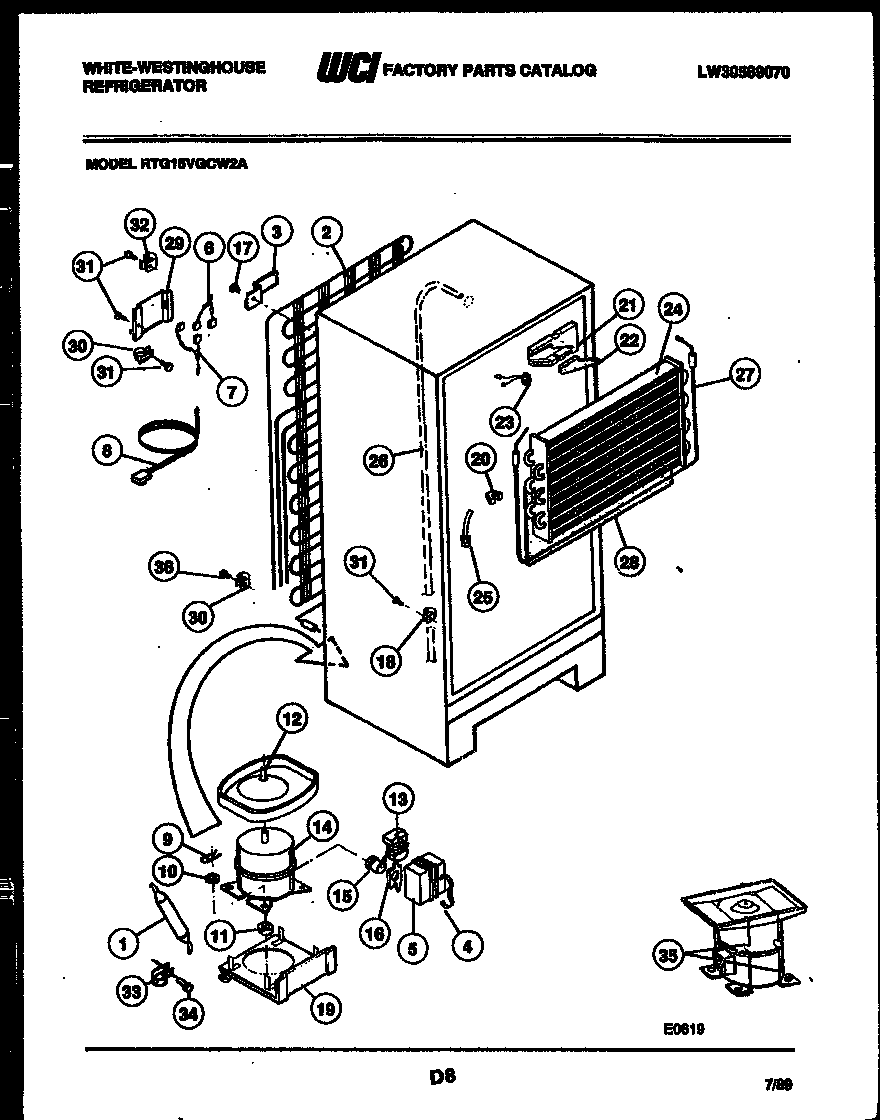

RTG15VGCH2A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 3015938
3WASHER
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WIRING HARNESS-CONTROL
7WCI G183367-01
8WCI G177252-02
9CLIP, COMPRESSOR MOUNTING (4)
10WASHER, COMPRESSOR MOUNTING (4)
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12NUT, LOCK
125303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12DEFROST PAN & NUT
13WCI G182225-06
14WCI 08950232
15WCI 3018922
16RETAINER, OVERLOAD
175308000039 Frigidaire Refrigerator Screw
19WCI G162822
20BLOCK, LEFT SIDE
21BLOCK, EVAPORATOR, RH
22PLUG, EVAPORATOR INSULATION BLOCK, R H
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24EVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26EXCHANGER-HEAT
27WCI G166646-02
28INSULATOR
29WCI G183584
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
32240396801 Frigidaire Refrigerator Tube Clamp
33WCI 3201679
34218843801 Frigidaire Refrigerator Screw
35HOT TUBE REPAIR KIT- (NON-ILLUSTRATED)
35WCI G167234
365304455852 Frigidaire Refrigerator Screw
