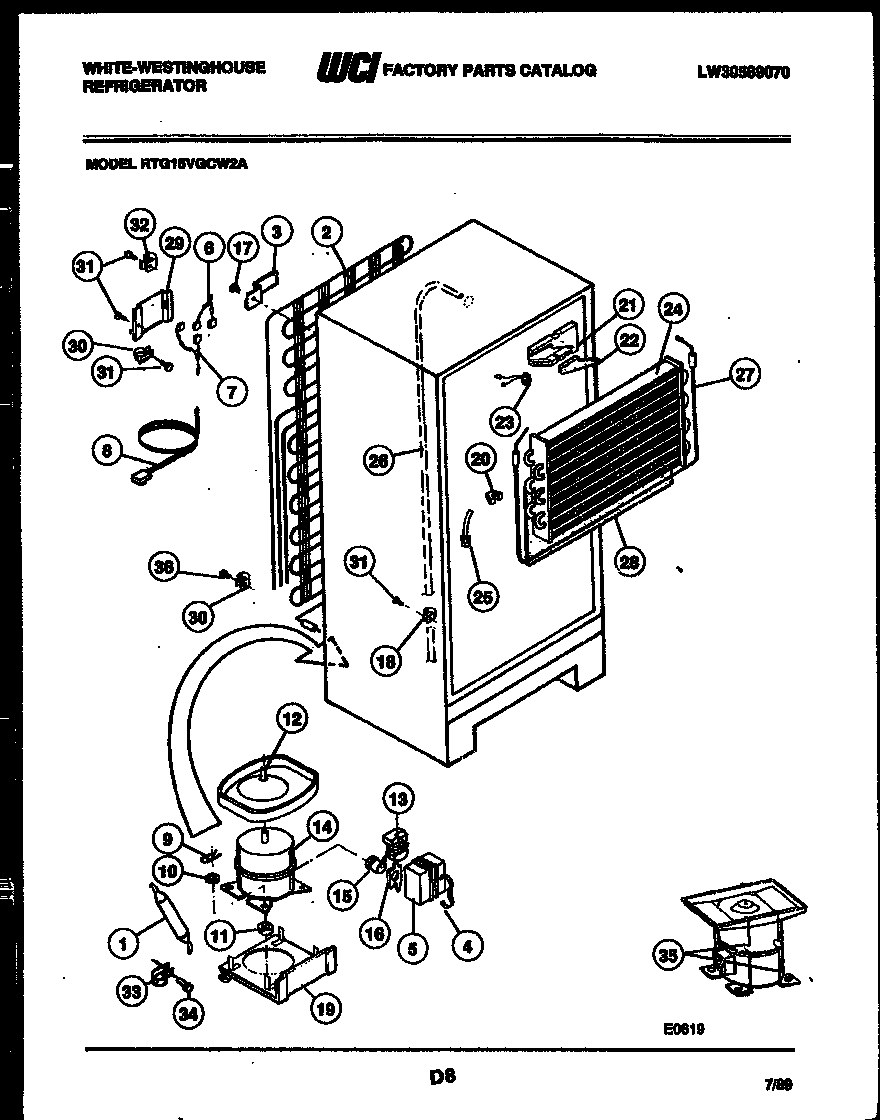

RTG15VGCV2A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI 3015938
3	WASHER
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	WIRING HARNESS-CONTROL
7	WCI G183367-01
8	WCI G177252-02
9	CLIP, COMPRESSOR MOUNTING (4)
10	WASHER, COMPRESSOR MOUNTING (4)
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12	NUT, LOCK
12	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12	DEFROST PAN & NUT
13	WCI G182225-06
14	WCI 08950232
15	WCI 3018922
16	RETAINER, OVERLOAD
17	5308000039 Frigidaire Refrigerator Screw
19	WCI G162822
20	BLOCK, LEFT SIDE
21	BLOCK, EVAPORATOR, RH
22	PLUG, EVAPORATOR INSULATION BLOCK, R H
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	EVAPORATOR
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	EXCHANGER-HEAT
27	WCI G166646-02
28	INSULATOR
29	WCI G183584
30	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
31	5304455651 Frigidaire Refrigerator Screw
32	240396801 Frigidaire Refrigerator Tube Clamp
33	WCI 3201679
34	218843801 Frigidaire Refrigerator Screw
35	HOT TUBE REPAIR KIT- (NON-ILLUSTRATED)
35	WCI G167234
36	5304455852 Frigidaire Refrigerator Screw
