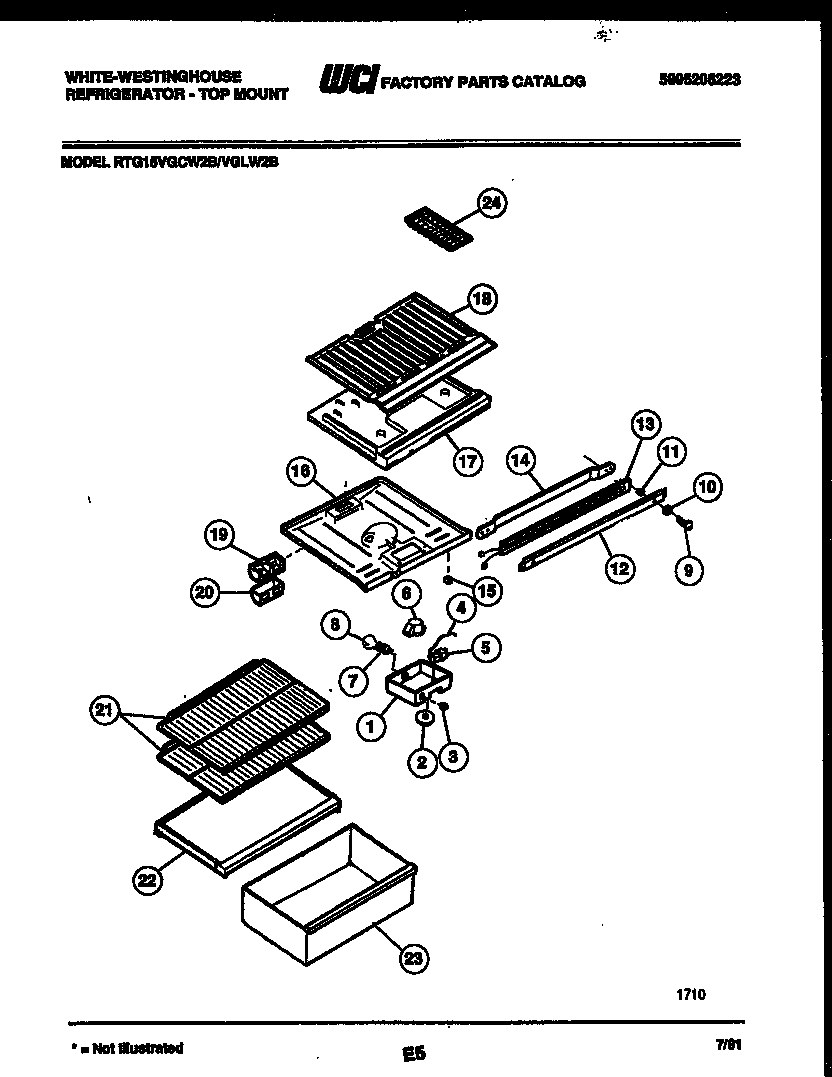

RTG15VGCV2B 04 – SHELVES AND SUPPORTS

RTG15VGCV2B 04 – SHELVES AND SUPPORTS

Written by

in

RTG15VGCV2B 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1AWCI G000180037
1B5304455650 Frigidaire Refrigerator Screw
1WCI 5317672202
2WCI 5308010011
3PLUG BTN (NON-ILLUSTRATED)
4TUBE
5WCI 5308015762
5AWCI 5303001260
6A5304455649 Frigidaire Refrigerator Screw
6WCI 5303007517
7SOCKET-LIGHT/LAMP
7AWCI 5308013113
8LIGHT BULB/LAMP, INCAND, OVEN, 250 V
9WCI 5308012258
10WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
11WCI 3001370
12WCI 3916135
13WCI 5303270975
14WCI 5308003604
155309918806 Frigidaire Refrigerator Light Switch Door
16AWCI 5303001380
16TOP PANEL-REFR, W/ SNAP BUSHING
17WCI 5308000759
17AWCI 5303015682
18WCI 5308000748
19DEFLECTOR-AIR
20COVER – AIR DEFLECTOR
21WCI 53172117303
22WCI 5308000749
23PAN – CRISPER
24215667501 Frigidaire Refrigerator Ice Tray Primary
