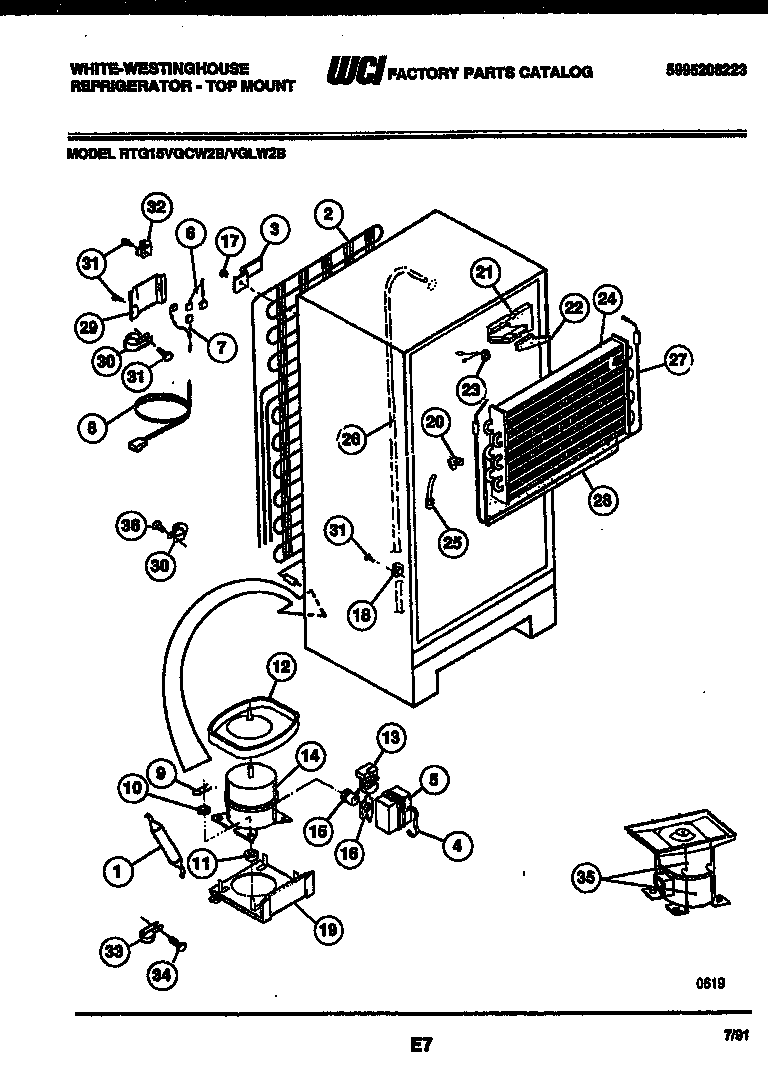

RTG15VGLD2B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*48125	NUT, 8-32 HEX, (2) (NI)
*48125	BRACKET, GROUNDING (NI)
*48125	WCI 5300189378
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI 5303015938
3	BRACKET-MTG (4)
3A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	WCI 5303015682
7	WCI 5308013114
8	CORD-ELECTRIC POWER
9	CLIP – COMPRESSOR MTG
10	WASHER-COMPR MTG
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12A	Nut,lock `1/4-20 ,drain pan mtg
12B	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
13	WCI 5303211376
14	WCI 5303916804
15	WCI 5303270973
16	CLIP-OVERLOAD
17	5308000039 Frigidaire Refrigerator Screw
19	WCI 5308009596
20	INSULATION BLOCK, LH
21	INSULATION BLOCK, RH
22	INSULATION PLUG, RH
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	WCI 5303272044
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	HEAT EXCHANGER, SUCTION LINE
27	WCI 5316664602
28	INSULATOR-EVAP, PLASTIC
29	WCI 5303001197
30	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
31	5304455651 Frigidaire Refrigerator Screw
32	5308000133 Frigidaire Refrigerator Clamp
33	WCI 3201679
34	218843801 Frigidaire Refrigerator Screw
35	PAN RETAINER KIT, SERVICE
36	5304455852 Frigidaire Refrigerator Screw
