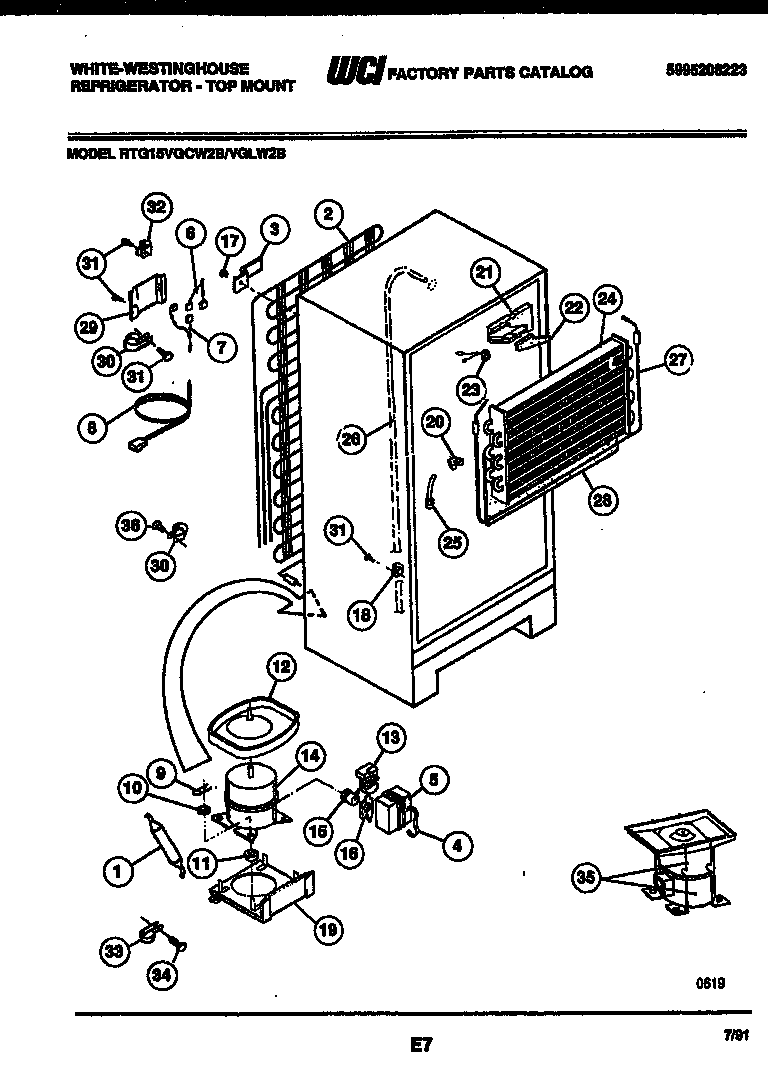

RTG15VGLF2B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*48125NUT, 8-32 HEX, (2) (NI)
*48125BRACKET, GROUNDING (NI)
*48125WCI 5300189378
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5303015938
3BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303015682
7WCI 5308013114
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12ANut,lock `1/4-20 ,drain pan mtg
12B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
13WCI 5303211376
14WCI 5303916804
15WCI 5303270973
16CLIP-OVERLOAD
175308000039 Frigidaire Refrigerator Screw
19WCI 5308009596
20INSULATION BLOCK, LH
21INSULATION BLOCK, RH
22INSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI 5303272044
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26HEAT EXCHANGER, SUCTION LINE
27WCI 5316664602
28INSULATOR-EVAP, PLASTIC
29WCI 5303001197
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
325308000133 Frigidaire Refrigerator Clamp
33WCI 3201679
34218843801 Frigidaire Refrigerator Screw
35PAN RETAINER KIT, SERVICE
365304455852 Frigidaire Refrigerator Screw
