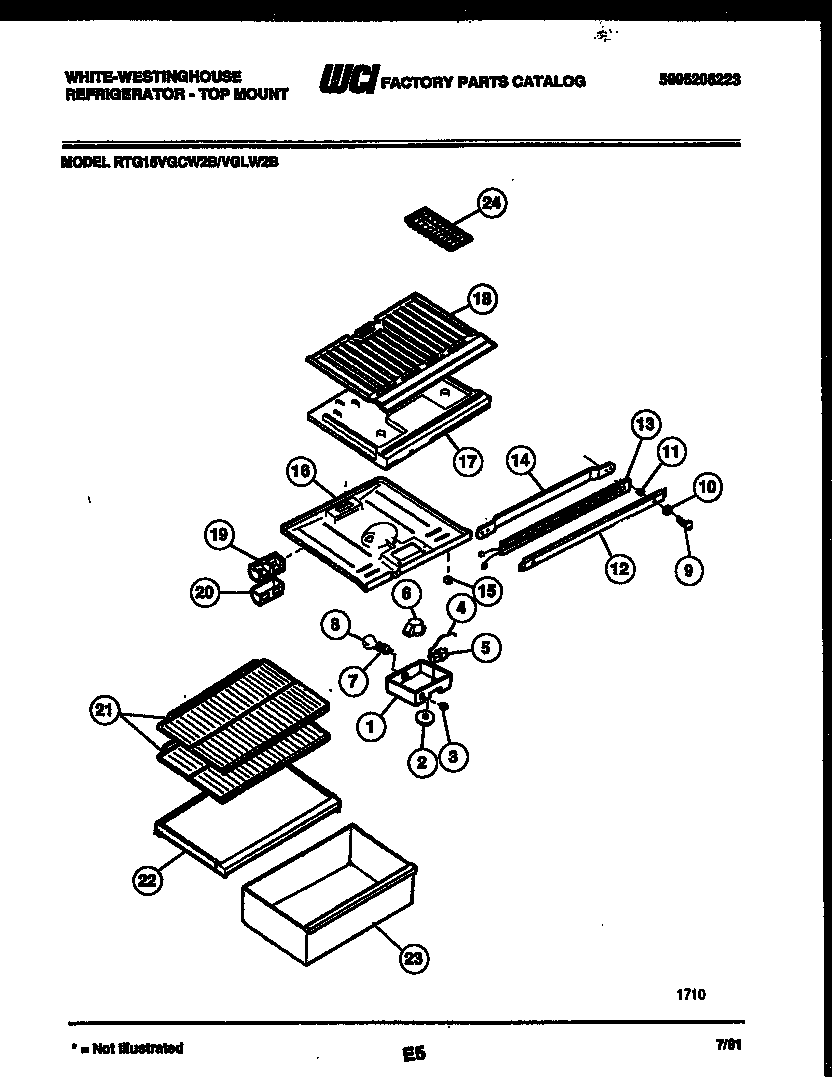

RTG15VGLV2B 04 – SHELVES AND SUPPORTS

Products

Position	Product
1A	WCI G000180037
1B	5304455650 Frigidaire Refrigerator Screw
1	WCI 5317672202
2	WCI 5308010011
3	PLUG BTN (NON-ILLUSTRATED)
4	TUBE
5	WCI 5308015762
5A	WCI 5303001260
6A	5304455649 Frigidaire Refrigerator Screw
6	WCI 5303007517
7	SOCKET-LIGHT/LAMP
7A	WCI 5308013113
8	LIGHT BULB/LAMP, INCAND, OVEN, 250 V
9	WCI 5308012258
10	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
11	WCI 3001370
12	WCI 3916135
13	WCI 5303270975
14	WCI 5308003604
15	5309918806 Frigidaire Refrigerator Light Switch Door
16A	WCI 5303001380
16	TOP PANEL-REFR, W/ SNAP BUSHING
17	WCI 5308000759
17A	WCI 5303015682
18	WCI 5308000748
19	DEFLECTOR-AIR
20	COVER - AIR DEFLECTOR
21	WCI 53172117303
22	WCI 5308000749
23	PAN - CRISPER
24	215667501 Frigidaire Refrigerator Ice Tray Primary
