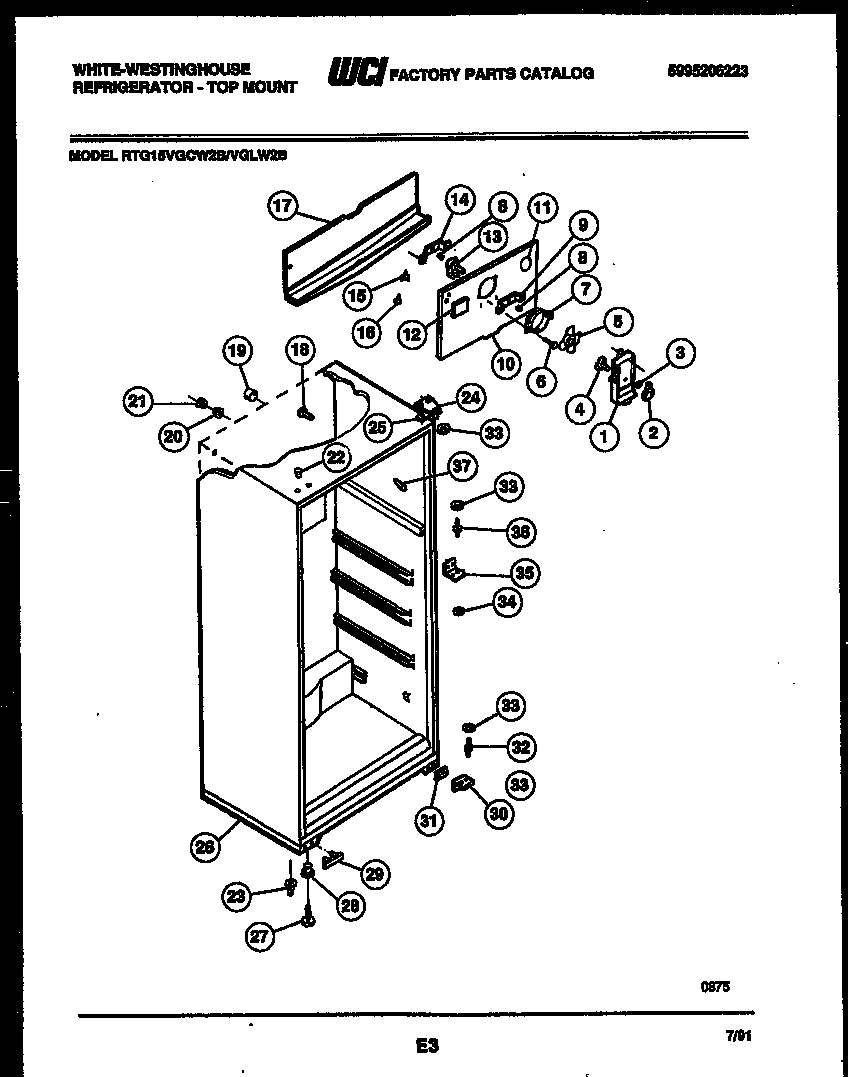

RTG15VGLW2B 03 – CABINET PARTS

RTG15VGLW2B 03 – CABINET PARTS

Written by

in

RTG15VGLW2B 03 – CABINET PARTS

Products

PositionProduct
*48110PLUG, BUTTON, CABINET LINER (NI)
1COVER-FAN
1BWCI G000187640
2KNOB-DAMPER CONTROL
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3001358
10B5304455650 Frigidaire Refrigerator Screw
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
13WCI 5300165207
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
165304455651 Frigidaire Refrigerator Screw
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23TUBE – DRAIN
24BRACKET-UPPER HINGE
25SHIM – UPPER HINGE
26WCI 5303006086
27SCREW-LEVELING (4)
28WCI 5308003584
29COVER-HOLE, LOWER HINGE
30A241710601 Frigidaire Refrigerator Screw
30HINGE – LOWER DOOR
31ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
31SHIM-LOWER HINGE
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WASHER, .34 X .62 X .05, NYLON
34WASHER, .28 X .62 X .19, NYLON
35BRACKET-CTR HINGE
35AWCI 5308012258
36WCI 5308000184
37CORNER TRIM, WHITE (4)
