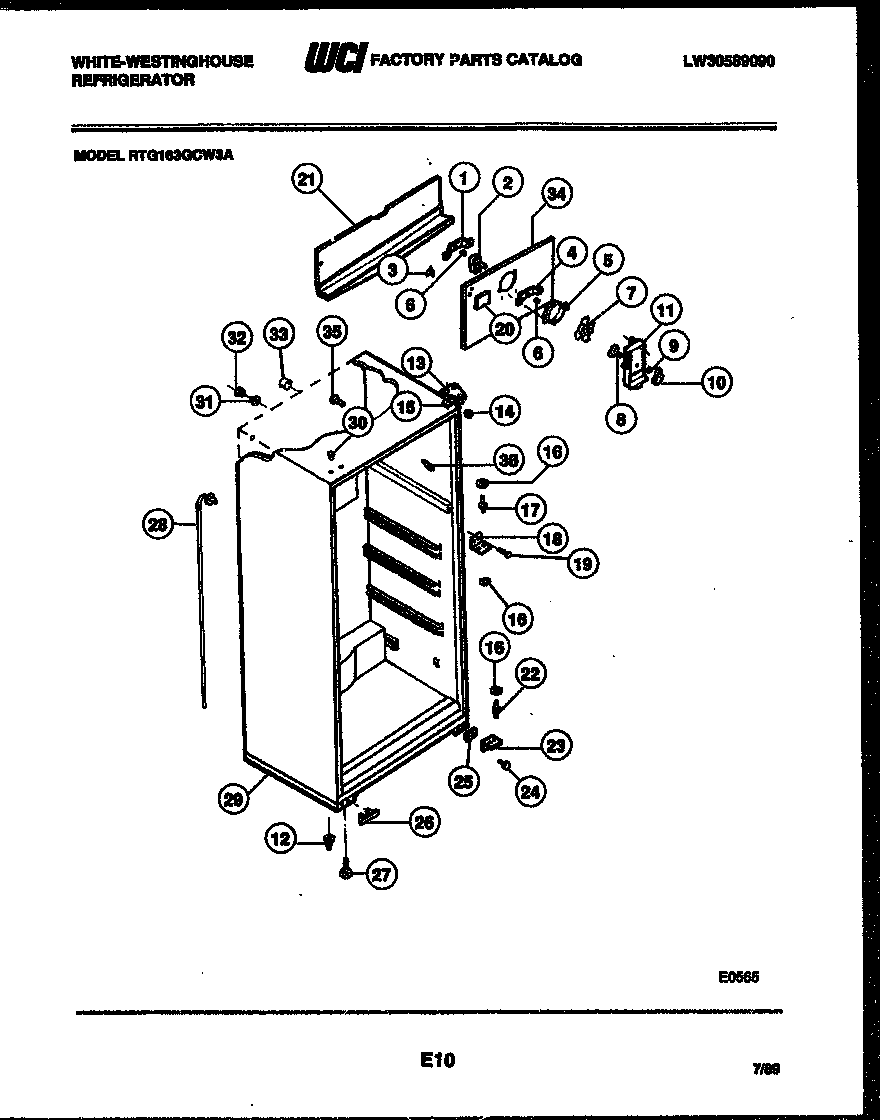

RTG163GCH3A 03 – CABINET PARTS

RTG163GCH3A 03 – CABINET PARTS

Written by

in

RTG163GCH3A 03 – CABINET PARTS

Products

PositionProduct
*21032BUTTON, LINER
1WCI 3205119
25300158289 Frigidaire Evaporator Fan Motor
3WCI G164571
4WCI 3205118
5RING, FAN ORIFICE
5A5304455651 Frigidaire Refrigerator Screw
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8DAMPER FAN COVER
9NUT, DAMPER MOUNTING
10WCI G162663-13
11BLABEL-FAN COVER (NON-ILLUSTRATED)
11WCI 3205739
12NUT, ANCHOR (2)
13BRACKET, TOP HINGE
13BTAPPING PLATE (2)
13A241710601 Frigidaire Refrigerator Screw
14WCI G103903
15WCI G183861
16WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17WCI G142220
18BRACKET, HINGE CENTER
19SCREW, BRACKET MOUNTING (4)
20PLUG, DECORATIVE
21TROUGH-DRAIN
225303001321 Frigidaire Refrigerator Lower Hinge Pin
23HINGE-BRACKET-BOTTOM
24ATAPPING, PLATE (2)
25SHIM, HINGE
26WCI G166912
27LEG-LEVELING (2)
28BSPOUT DRAIN TUBE
28APIN PUSH SPOUT (2)
28CRING, SEAL (NON-ILLUSTRATED)
28TUBE, DRAIN
29CABINET BASE
30WCI G174747-09
31WCI G174733
32WCI G174734
33TUBE, INSULATION (2)
34CPLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
34COVER-COIL
34BNUT, ORIFICE (2)
34A5304455650 Frigidaire Refrigerator Screw
35WCI G163669
36WCI 3202338
