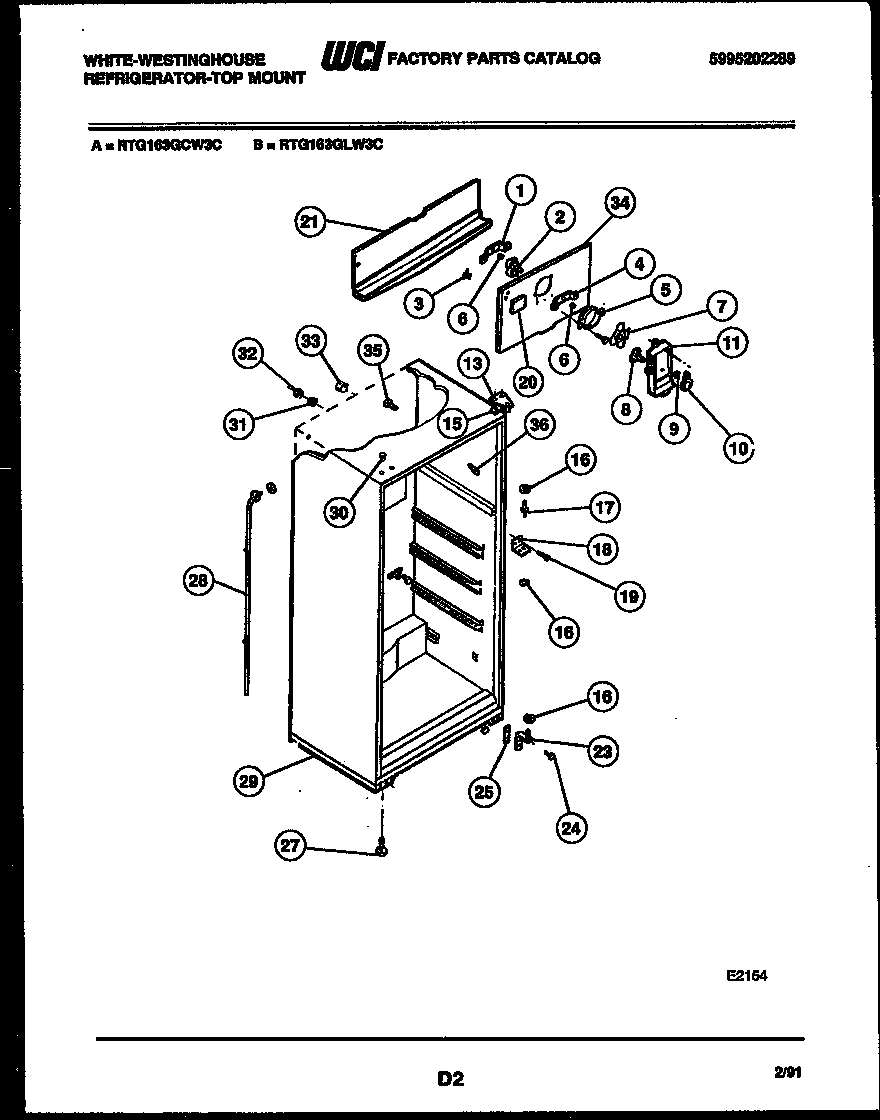

RTG163GCH3C 03 – CABINET PARTS

RTG163GCH3C 03 – CABINET PARTS

Written by

in

RTG163GCH3C 03 – CABINET PARTS

Products

PositionProduct
*41968PLUG, BUTTON, CABINET LINER (NI)
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3WCI 5308000107
4WCI 5303001226
5WCI 5308017408
5A5304455651 Frigidaire Refrigerator Screw
5RING-FAN ORIFICE
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8DAMPER-FAN COVER
9Nut,push-on
10KNOB-DAMPER CONTROL
11BLABEL-FAN COVER (NON-ILLUSTRATED)
11WCI 3205739
13BRACKET-UPPER HINGE
15SHIM – UPPER HINGE
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 08012258
20BUTTON – DECORATIVE PLUG
21TROUGH-DRAIN
23BRACKET-LOWER HINGE, W/ HINGE PIN
23BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
23ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
24241710601 Frigidaire Refrigerator Screw
24ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
25WCI 5303212488
27Screw-leveling,(2)
28AWCI 5303001361
28BWCI 5308000056
28WCI 5303210377
28CWCI 5303207353
29BASE-CABINET
30BUTTON-HINGE-WHEAT
31WCI 5303001286
32WCI 5303001287
33TUBE-RUBBER
34BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
34WCI 3001527
34C5303208309 Frigidaire Refrigerator Plug Hole
34A5304455650 Frigidaire Refrigerator Screw
35SUPPORT-COIL COVER
36WCI 5303202338
