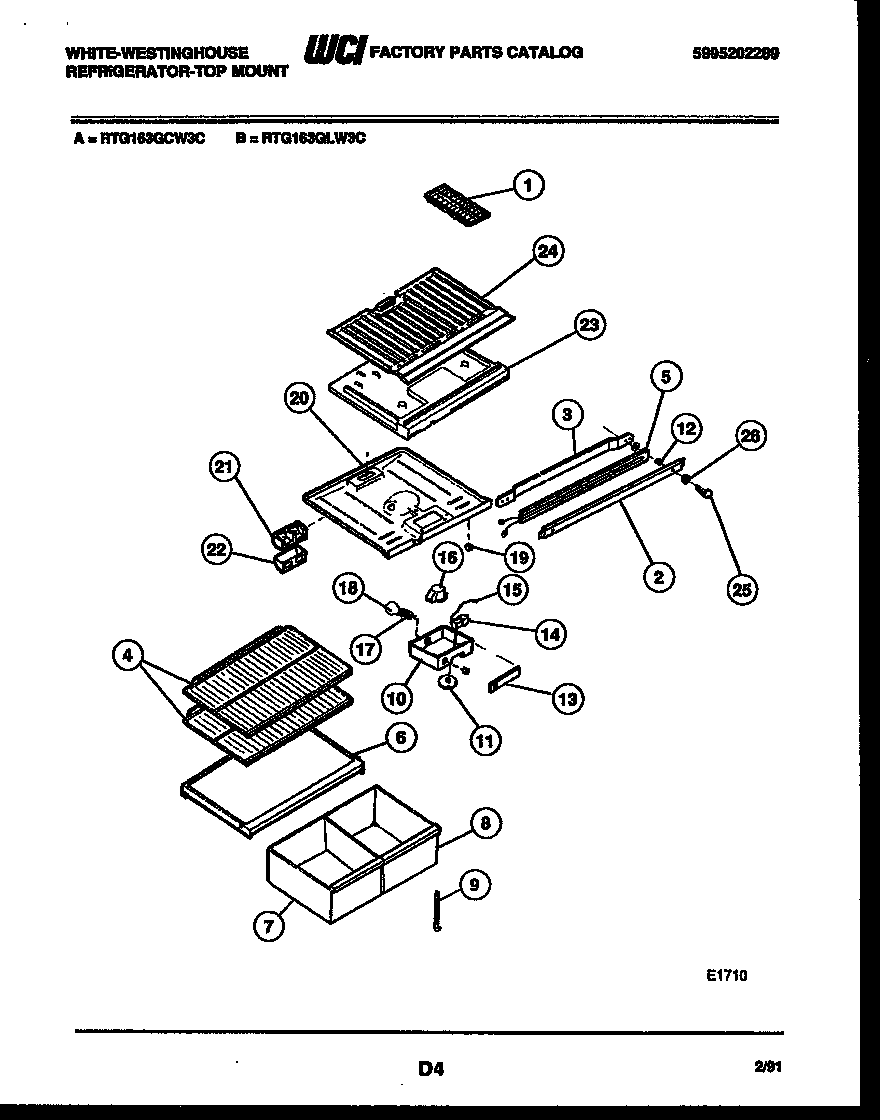

RTG163GCH3C 04 – SHELVES AND SUPPORTS

RTG163GCH3C 04 – SHELVES AND SUPPORTS

Written by

in

RTG163GCH3C 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI 3916132
3WCI 5308003604
4WCI 5317941501
6WCI 5349001603
8WCI 3016760
9SUPPORT-CRISPER CVR, ADJUSTABLE
10WCI 5308009730
10A5304455650 Frigidaire Refrigerator Screw
10BSWITCH-SLIDE
11WCI 08006978
12SPACER-MULLION MTG, STEEL
13LABEL-CONTROL BOX
14WCI 5303200810
14AWCI 5303001260
15TUBE
16A5304455649 Frigidaire Refrigerator Screw
16215846604 Frigidaire Refrigerator Defrost Timer
17SOCKET-LIGHT/LAMP
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20AWCI 5303001380
20TOP PANEL-REFR, W/ SNAP BUSHING
21DEFLECTOR-AIR
22COVER – AIR DEFLECTOR
23WCI 5308009750
23AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
24WCI 5303001537
25WCI 5308012258
26WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
