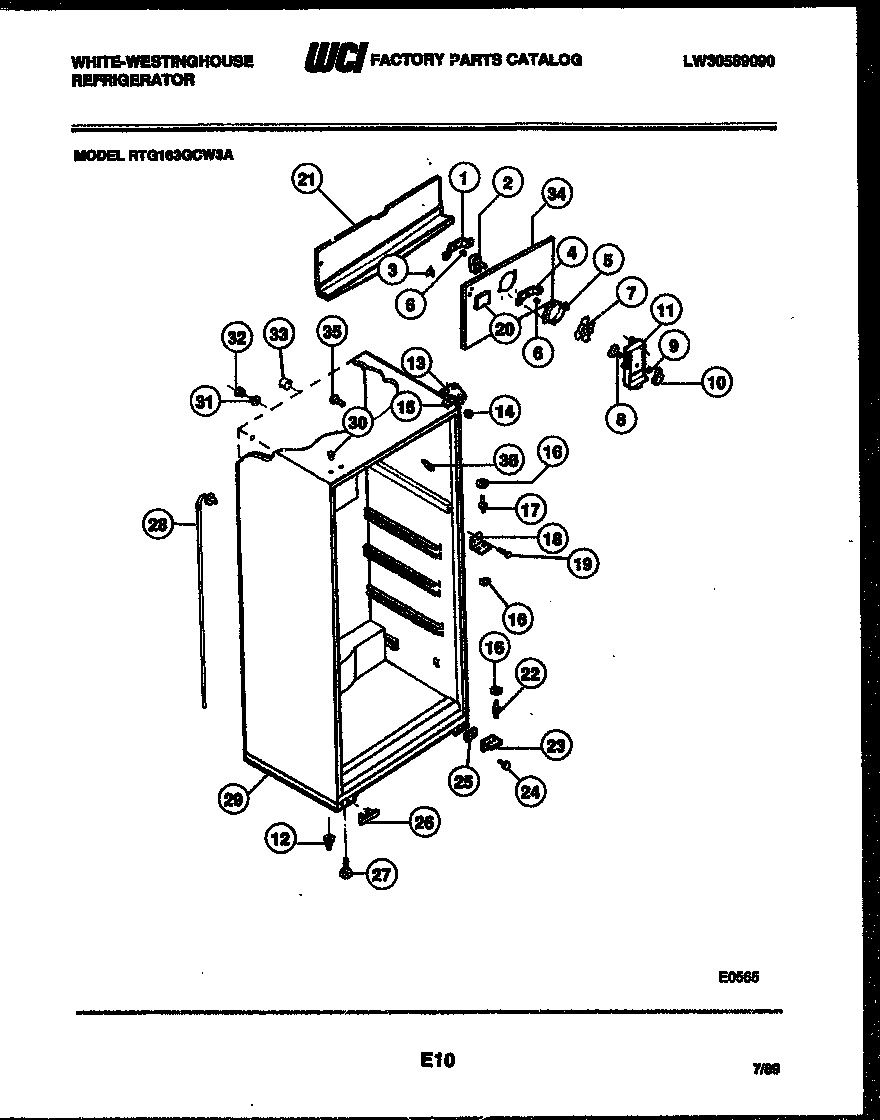

RTG163GCV3A 03 – CABINET PARTS

Products

Position	Product
*21032	BUTTON, LINER
1	WCI 3205119
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI 3205118
5	RING, FAN ORIFICE
5A	5304455651 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER FAN COVER
9	NUT, DAMPER MOUNTING
10	WCI G162663-13
11	WCI 3205739
11B	LABEL-FAN COVER (NON-ILLUSTRATED)
12	NUT, ANCHOR (2)
13A	241710601 Frigidaire Refrigerator Screw
13B	TAPPING PLATE (2)
13	BRACKET, TOP HINGE
14	WCI G103903
15	WCI G183861
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW, BRACKET MOUNTING (4)
20	PLUG, DECORATIVE
21	TROUGH-DRAIN
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	HINGE-BRACKET-BOTTOM
24A	TAPPING, PLATE (2)
25	SHIM, HINGE
26	WCI G166912
27	LEG-LEVELING (2)
28	TUBE, DRAIN
28A	PIN PUSH SPOUT (2)
28B	SPOUT DRAIN TUBE
28C	RING, SEAL (NON-ILLUSTRATED)
29	CABINET BASE
30	WCI G174747-08
31	WCI G174733
32	WCI G174734
33	TUBE, INSULATION (2)
34C	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
34	COVER-COIL
34B	NUT, ORIFICE (2)
34A	5304455650 Frigidaire Refrigerator Screw
35	WCI G163669
36	CORNER TRIM-AVOCADO
