RTG163GCW3B 02 – DOOR PARTS

RTG163GCW3B 02 – DOOR PARTS

Written by

in

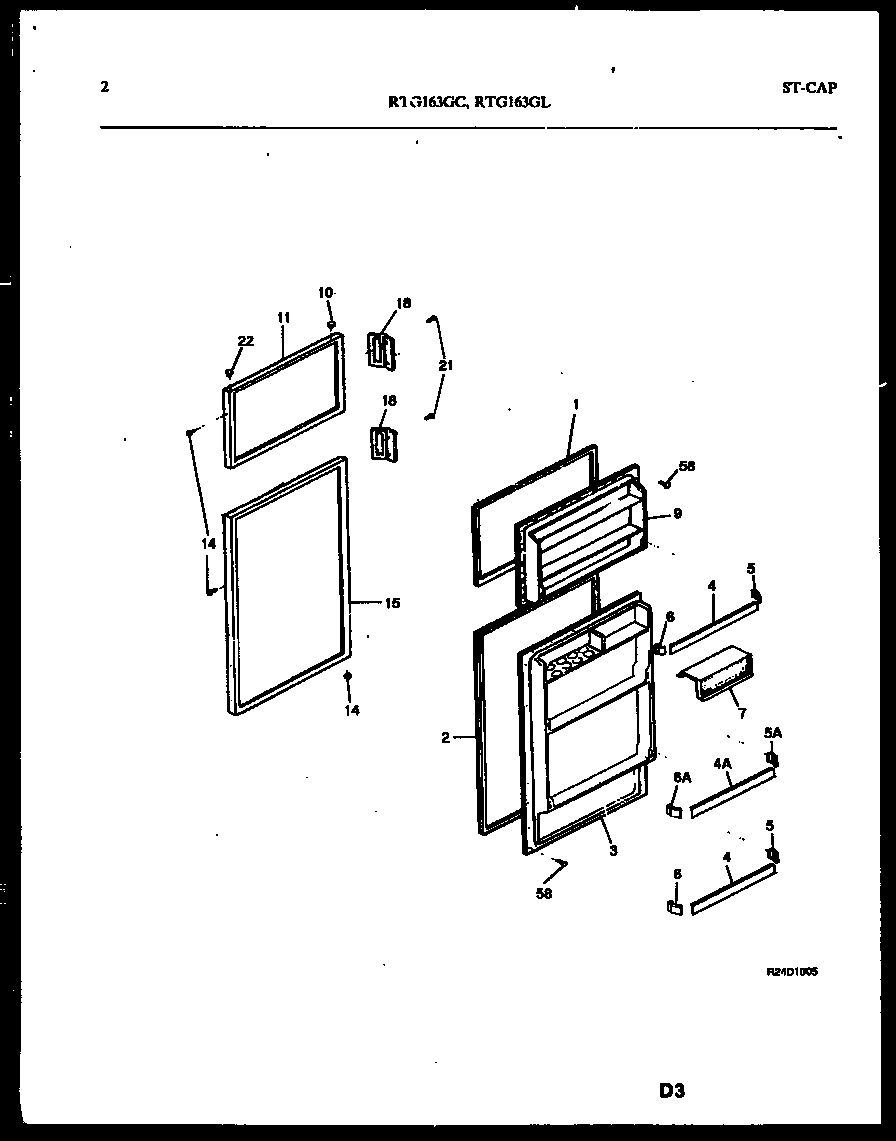

RTG163GCW3B 02 – DOOR PARTS

Products

PositionProduct
*50357INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001399
2218730603 Frigidaire Door Gasket
3WCI 5303274306
4AWCI 5317722001
4RACK-DOOR, (2)
5AWCI 5317722101
5WCI 5317689101
6AWCI 5317722201
6WCI 5317689201
7WCI 5303274304
9WCI 5303274303
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FRZR DOOR, WHITE
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE
18HANDLE-COMPLETE
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
