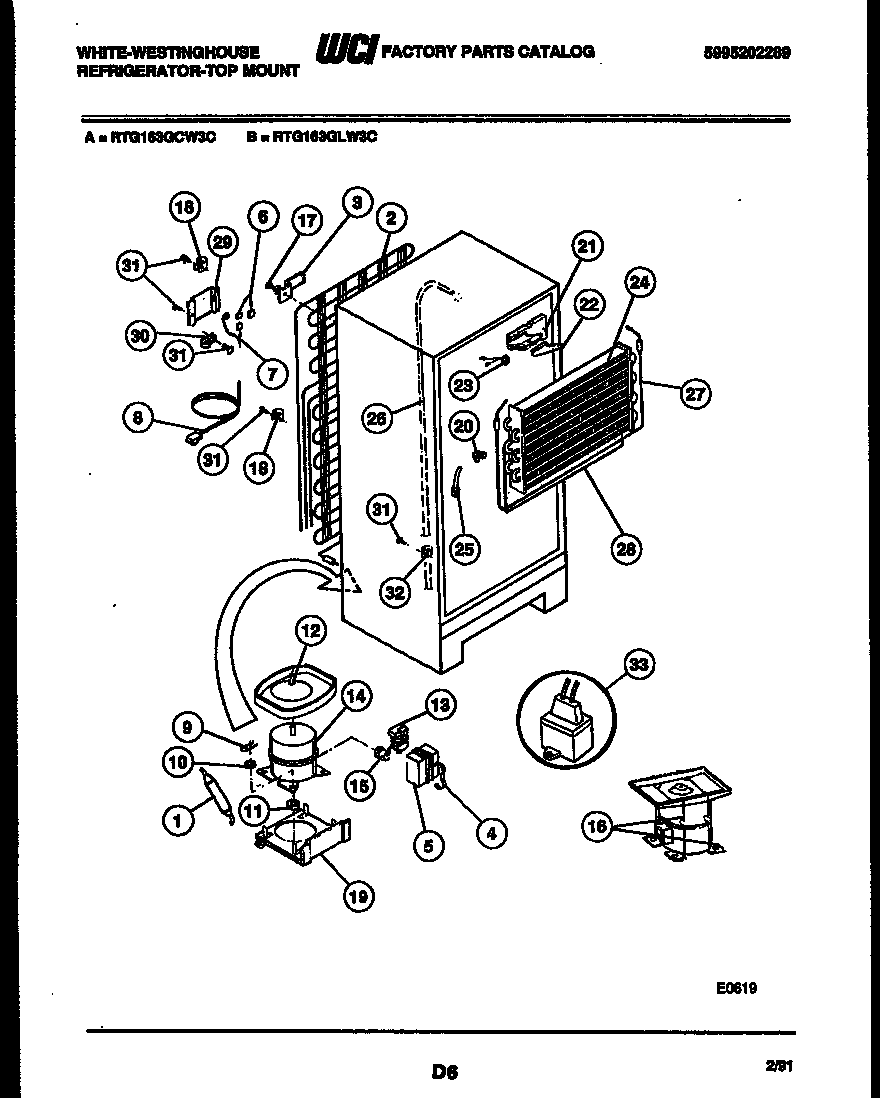

RTG163GLF3C 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RTG163GLF3C 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RTG163GLF3C 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*41976HOT TUBE REPAIR KIT-SERVICE
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5303001341
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3BRACKET-MTG (4)
5WCI 5303209254
6HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12C5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12BNut,lock `1/4-20 ,drain pan mtg
13RELAY-TL
14COMPRESSOR W/ ELECTRICALS
15WCI 5303270294
16PAN-DEFROST-ORIG COMPRESSOR
175308000039 Frigidaire Refrigerator Screw
18240396801 Frigidaire Refrigerator Tube Clamp
19WCI 5308013663
20INSULATION BLOCK, LH
21INSULATION BLOCK, RH
22INSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24EVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 5308000728
27WCI 5308009754
28INSULATOR-EVAP, PLASTIC
29WCI 5303001197
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
325308000133 Frigidaire Refrigerator Clamp
33CAPACITOR
