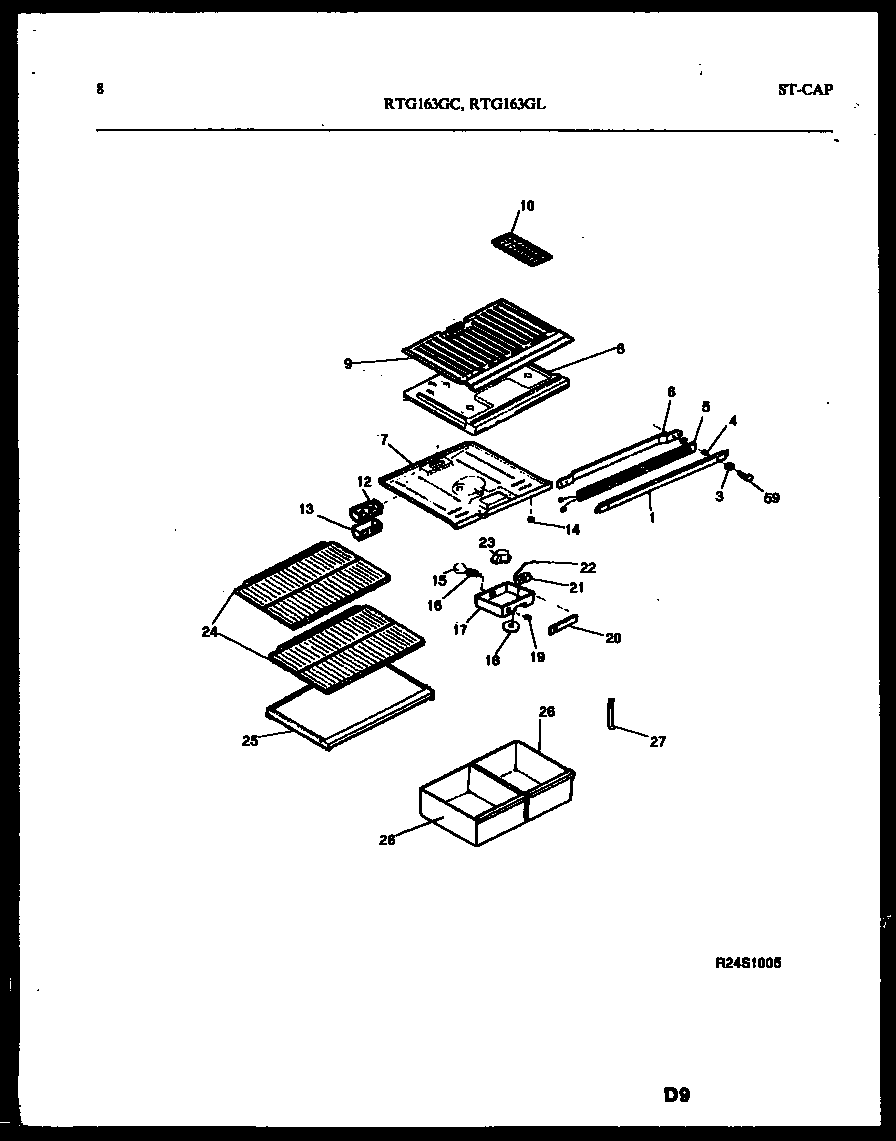

RTG163GLH3B 05 – SHELVES AND SUPPORTS

RTG163GLH3B 05 – SHELVES AND SUPPORTS

Written by

in

RTG163GLH3B 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*503735304455649 Frigidaire Refrigerator Screw
1WCI 3916132
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5308017408
6WCI 5308003604
7TOP PANEL-REFR, W/ SNAP BUSHING
7WCI 5303001380
7BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
8WCI 5308009750
8HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
9WCI 5303001537
10215667501 Frigidaire Refrigerator Ice Tray Primary
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5308009730
175304455650 Frigidaire Refrigerator Screw
18WCI 08006978
19SWITCH-ENERGY SAVER, SLIDE TYPE
20LABEL-CONTROL BOX
21WCI 5303200810
21WCI 5303001260
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5317941501
25WCI 5349001603
26WCI 3016760
27SUPPORT-CRISPER CVR, ADJUSTABLE
59WCI 5308012258
