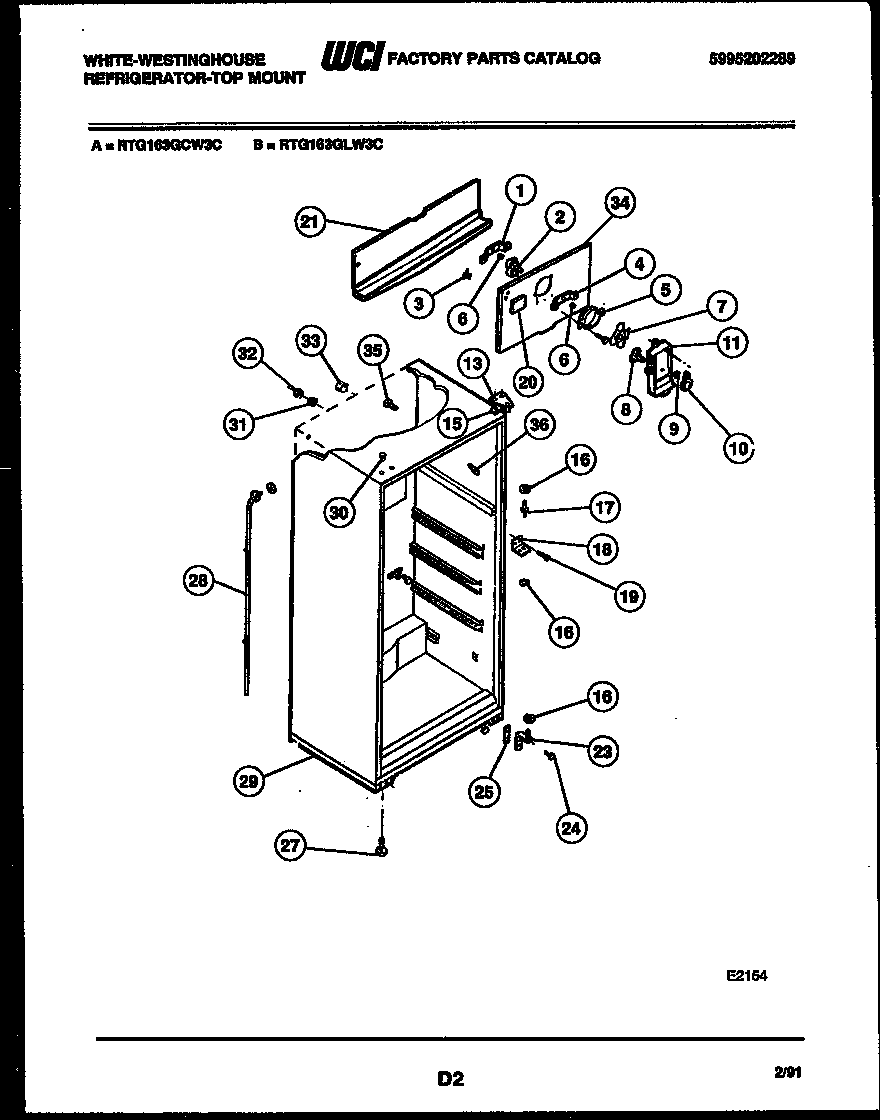

RTG163GLW3C 03 – CABINET PARTSadmin2025-04-26T10:30:45+00:00RTG163GLW3C 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *41968 | PLUG, BUTTON, CABINET LINER (NI) |
| 1 | BRACKET-MOTOR MTG, REAR |
| 2 | 5300158289 Frigidaire Evaporator Fan Motor |
| 3 | WCI 5308000107 |
| 4 | WCI 5303001226 |
| 5A | 5304455651 Frigidaire Refrigerator Screw |
| 5 | RING-FAN ORIFICE |
| 5 | WCI 5308017408 |
| 6 | G187559 Frigidaire Refrigerator Bushing |
| 7 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 8 | DAMPER-FAN COVER |
| 9 | Nut,push-on |
| 10 | KNOB-DAMPER CONTROL |
| 11B | LABEL-FAN COVER (NON-ILLUSTRATED) |
| 11 | WCI 3205739 |
| 13 | BRACKET-UPPER HINGE |
| 15 | SHIM - UPPER HINGE |
| 16 | WCI 5308000186 |
| 17 | WCI 5308000184 |
| 18 | BRACKET-CTR HINGE |
| 19 | WCI 08012258 |
| 20 | BUTTON - DECORATIVE PLUG |
| 21 | TROUGH-DRAIN |
| 23B | TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED) |
| 23A | TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED) |
| 23 | BRACKET-LOWER HINGE, W/ HINGE PIN |
| 24 | 241710601 Frigidaire Refrigerator Screw |
| 24A | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 25 | WCI 5303212488 |
| 27 | Screw-leveling,(2) |
| 28C | WCI 5303207353 |
| 28B | WCI 5308000056 |
| 28 | WCI 5303210377 |
| 28A | WCI 5303001361 |
| 29 | BASE-CABINET |
| 30 | PLUG-BUTTON, WHITE |
| 31 | WCI 5303001286 |
| 32 | WCI 5303001287 |
| 33 | TUBE-RUBBER |
| 34C | 5303208309 Frigidaire Refrigerator Plug Hole |
| 34B | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 34 | WCI 3001527 |
| 34A | 5304455650 Frigidaire Refrigerator Screw |
| 35 | SUPPORT-COIL COVER |
| 36 | TRIM-CABINET CORNER, WHITE |
