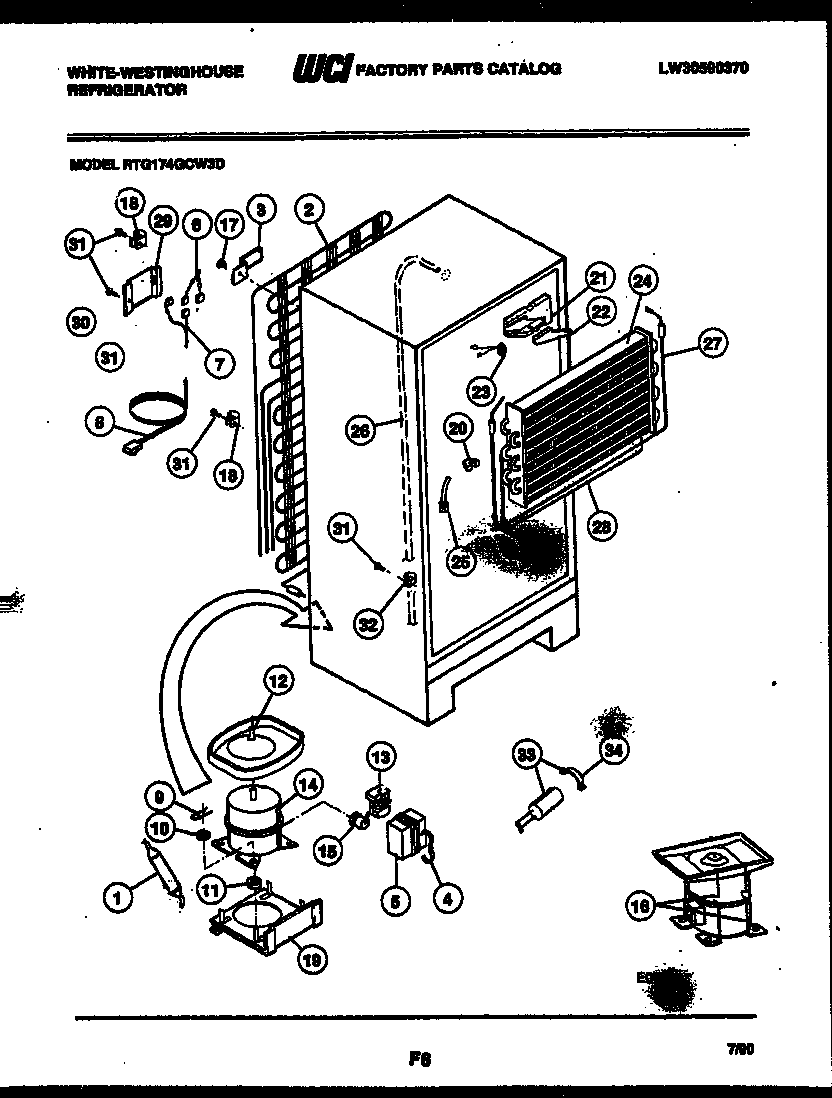

RTG174GCD3D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*33005	HOT TUBE REPAIR KIT
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G178225
3	BRACKET-CONDENSER MOUNTING (4)
3A	WASHER
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	HARNESS, WIRING
7	HARNESS-COMPRESSOR
8	CORD, SERVICE
9	CLIP, COMPRESSOR MOUNTING (4)
10	WCI 08003633
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12	DEFROST PAN & NUT
12A	NUT, LOCK
12B	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
13	WCI 3007173
14	COMPRESSOR W/ ELEC
15	WCI 3206096
16	WCI G167234
17	5308000039 Frigidaire Refrigerator Screw
19	PLATE
20	BLOCK, LEFT SIDE
21	BLOCK, EVAPORATOR, RH
22	PLUG, EVAPORATOR INSULATION BLOCK, R H
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	EVAPORATOR
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	HEAT-EXCH
27	WCI 08009754
28	INSULATOR
29	WCI G183584
30	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
31	5304455651 Frigidaire Refrigerator Screw
32	240396801 Frigidaire Refrigerator Tube Clamp
33	CAPACITOR
34	STRAP-CAPACITOR
