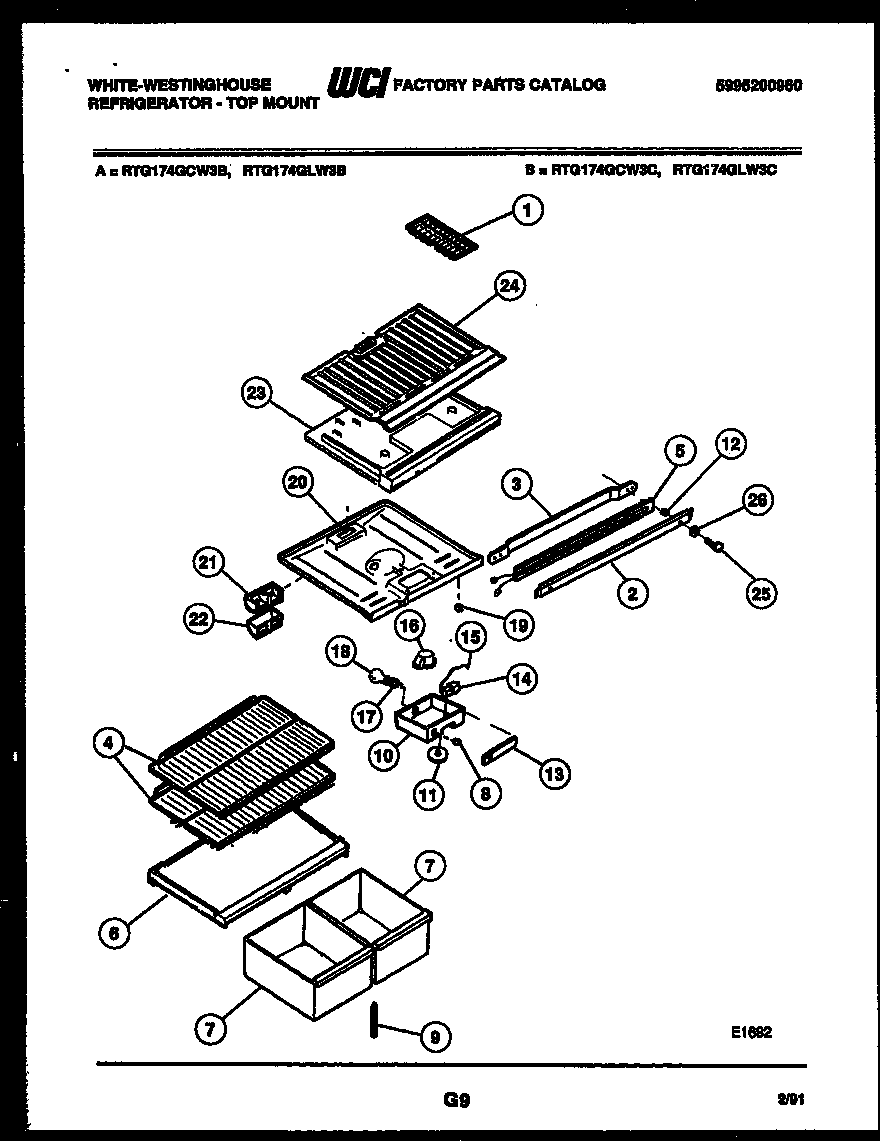

RTG174GCF3B 04 – SHELVES AND SUPPORTSadmin2025-04-26T10:28:51+00:00RTG174GCF3B 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 2 | WCI 3916133 |
| 3 | WCI 5308003604 |
| 4 | WCI 5317941501 |
| 5 | WCI 5308017408 |
| 6 | WCI 5349001603 |
| 7 | WCI 5349001501 |
| 8 | SWITCH-ENERGY SAVER, SLIDE TYPE |
| 9 | SUPPORT, COVER |
| 10A | 5304455650 Frigidaire Refrigerator Screw |
| 10 | WCI 5308009730 |
| 11 | WCI 08006978 |
| 12 | SPACER-MULLION MTG, STEEL |
| 13 | LABEL-CONTROL BOX |
| 14 | WCI 5303200810 |
| 14A | WCI 5303001260 |
| 15 | TUBE |
| 16 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 16A | 5304455649 Frigidaire Refrigerator Screw |
| 17 | SOCKET-LIGHT/LAMP |
| 18 | 316538904 Frigidaire Oven Lamp Light |
| 19 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 20 | TOP PANEL-REFR, W/ SNAP BUSHING |
| 20A | WCI 5303001380 |
| 20B | BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED) |
| 21 | DEFLECTOR-AIR |
| 22 | COVER - AIR DEFLECTOR |
| 23A | HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED) |
| 23 | WCI 5308009750 |
| 24 | WCI 5303001537 |
| 25 | WCI 5308012258 |
| 26 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
