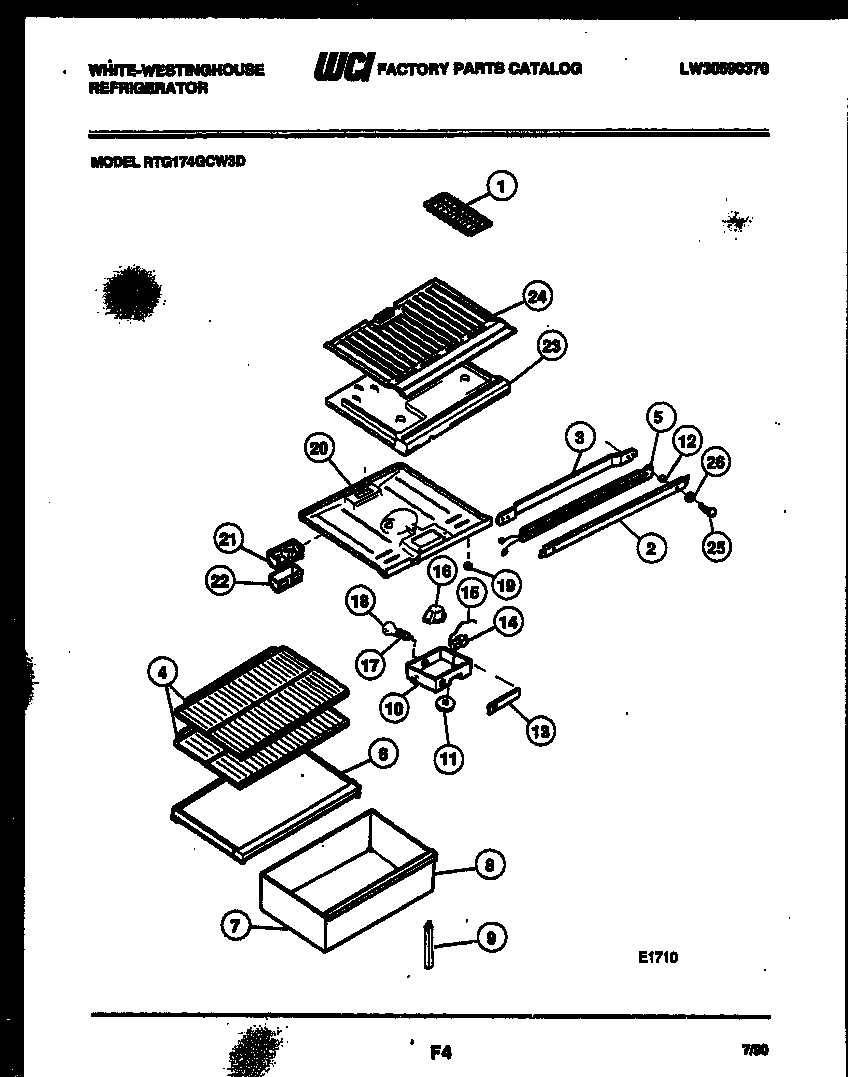

RTG174GCF3D 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	215667501 Frigidaire Refrigerator Ice Tray Primary
2	WCI 3916133
3	CLAMP, MULLION MOUNTING
4	SHELF-SLIDING (3)
5	WCI 08017408
6	WCI G490016-03
8	WCI G490015-01
9	SUPPORT, COVER
10A	5304455650 Frigidaire Refrigerator Screw
10	WCI G174765-03
10B	WCI 3001670
11	KNOB-TEMP CONTROL
12A	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
12	SPACER (NON-ILLUSTRATED)
13	LABEL-CONTROL BOX
14	WCI 3200810
14A	WCI G107080
15	TUBE
16A	5304455649 Frigidaire Refrigerator Screw
16	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17	SOCKET LIGHT
18	316538904 Frigidaire Oven Lamp Light
19	5309918806 Frigidaire Refrigerator Light Switch Door
20A	SCREW (5)
20	TOP-REFRIGERATOR
21	DEFLECTOR AIR
22	WCI G162178
23A	HARNESS, WIRING
23	DIVIDER, CENTER
24	BOTTOM, FC
25	SCREW, BRACKET MOUNTING (4)
26	WASHER (2)
