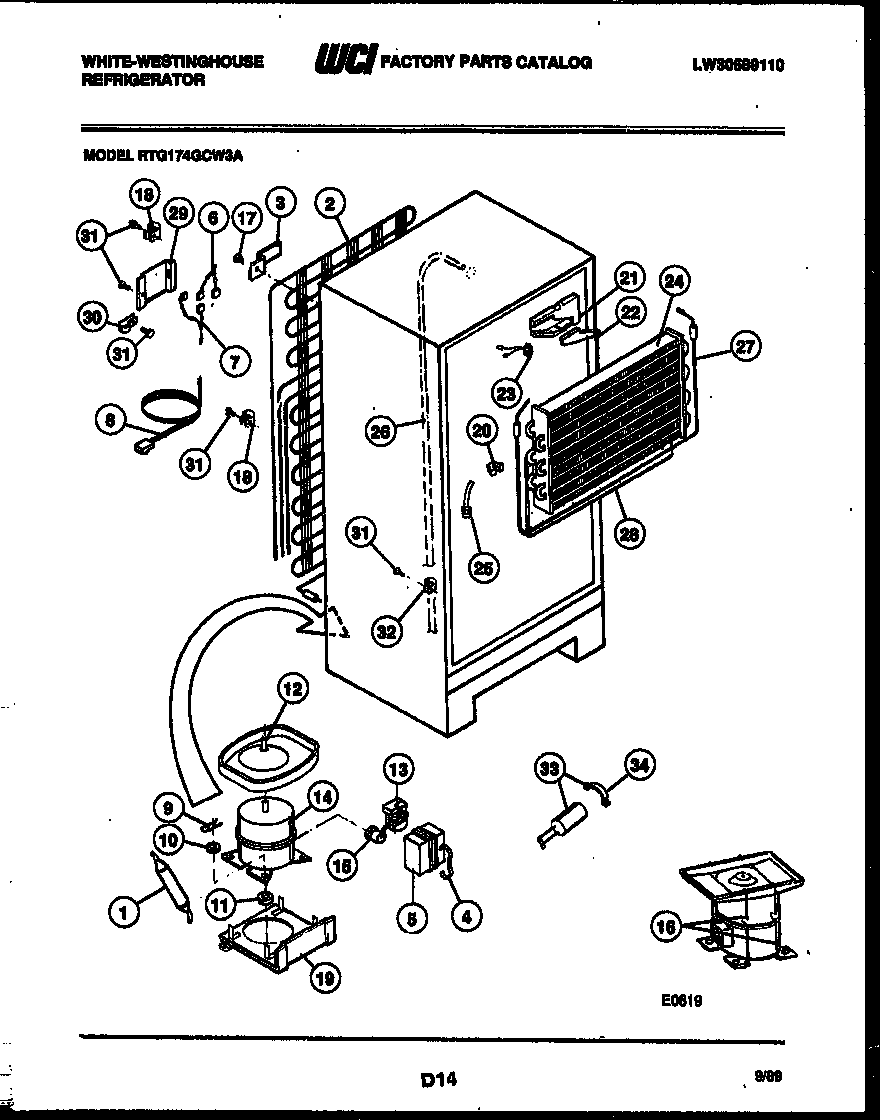

RTG174GCH3A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RTG174GCH3A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RTG174GCH3A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*21724HOT TUBE REPAIR KIT
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G178225
3AWASHER
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6HARNESS, WIRING
7HARNESS-COMPRESSOR
8CORD, SERVICE
9CLIP, COMPRESSOR MOUNTING (4)
10WCI 08003633
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12ANUT, LOCK
12DEFROST PAN & NUT
12B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
13WCI 3007173
14WCI 3916004
15WCI G188877
16WCI G167234
175308000039 Frigidaire Refrigerator Screw
19PLATE
20BLOCK, LEFT SIDE
21BLOCK, EVAPORATOR, RH
22PLUG, EVAPORATOR INSULATION BLOCK, R H
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24EVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26HEAT-EXCH
27WCI 08009754
28INSULATOR
29WCI G183584
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
32240396801 Frigidaire Refrigerator Tube Clamp
33CAPACITOR-RUN
34STRAP-CAPACITOR
