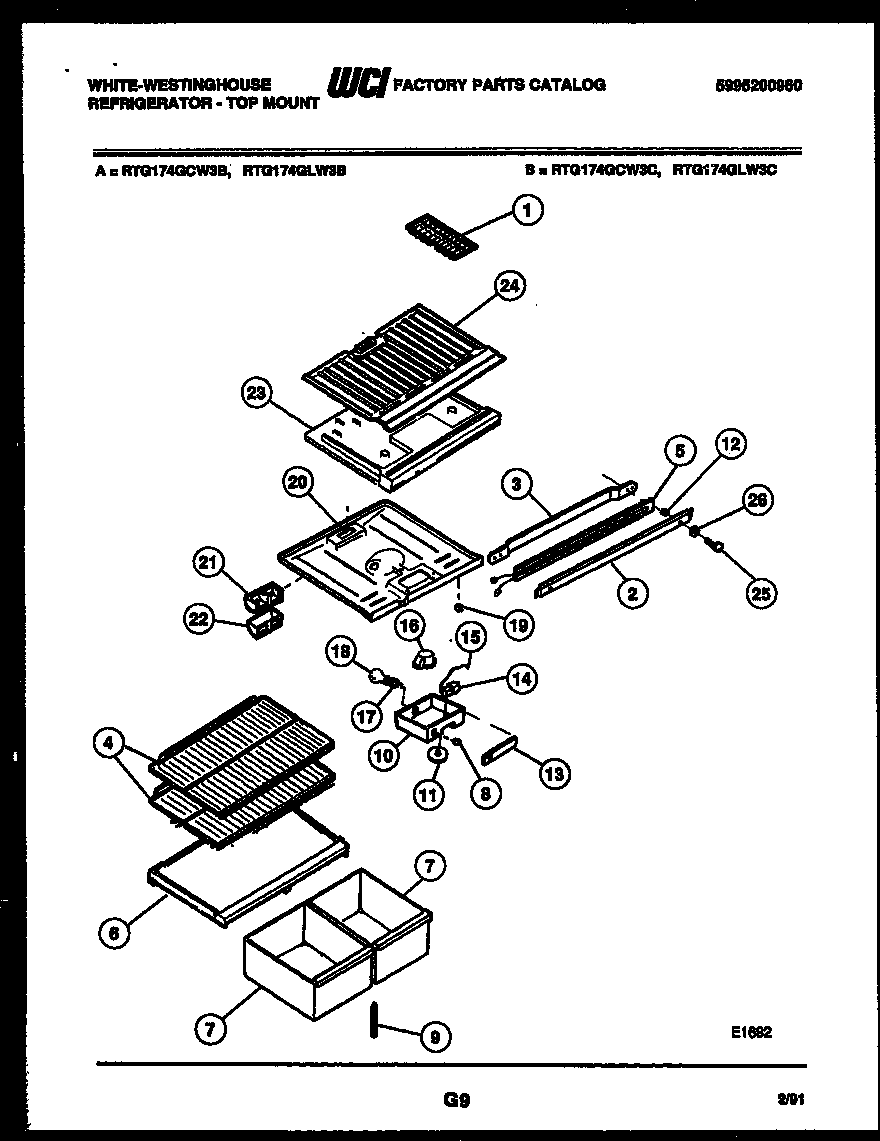

RTG174GCH3C 04 – SHELVES AND SUPPORTS

RTG174GCH3C 04 – SHELVES AND SUPPORTS

Written by

in

RTG174GCH3C 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI 3916132
3WCI 5308003604
4WCI 5317941501
5WCI 5308017408
6WCI 5349001603
7WCI 5349001501
8SWITCH-ENERGY SAVER, SLIDE TYPE
9SUPPORT, COVER
10A5304455650 Frigidaire Refrigerator Screw
10WCI 5308009730
11WCI 08006978
12SPACER-MULLION MTG, STEEL
13LABEL-CONTROL BOX
14WCI 5303200810
14AWCI 5303001260
15TUBE
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17SOCKET-LIGHT/LAMP
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20TOP PANEL-REFR, W/ SNAP BUSHING
20AWCI 5303001380
20BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
21DEFLECTOR-AIR
22COVER – AIR DEFLECTOR
23AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
23WCI 5308009750
24WCI 5303001537
25WCI 5308012258
26WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
