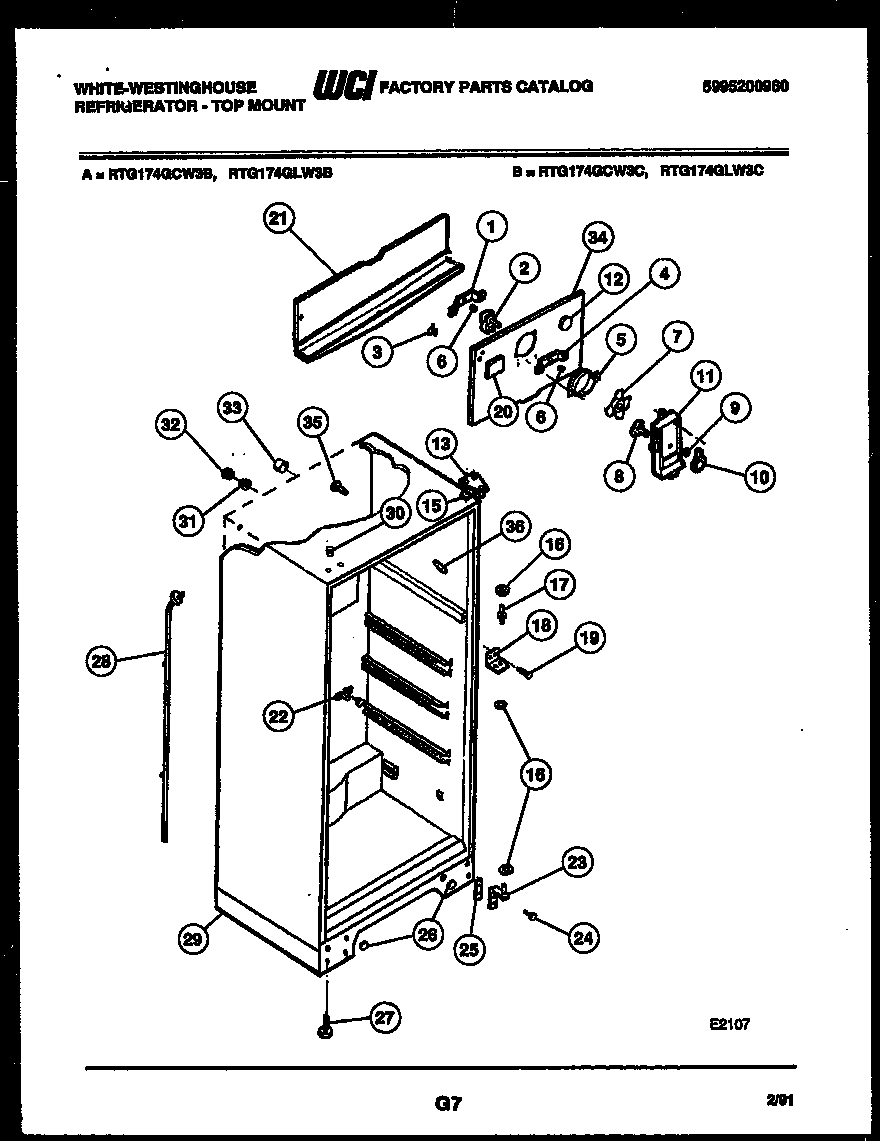

RTG174GCW3C 03 – CABINET PARTS

Products

PositionProduct
*42391PLUG, BUTTON, CABINET LINER (NI)
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3WCI 5308000107
4WCI 5303001226
5A5304455651 Frigidaire Refrigerator Screw
5RING-FAN ORIFICE
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8DAMPER-FAN COVER
9Nut,push-on
10KNOB-DAMPER CONTROL
11BWCI G000187640
11WCI 3205739
125303208309 Frigidaire Refrigerator Plug Hole
13BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
13BRACKET-UPPER HINGE
15SHIM – UPPER HINGE
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 5308012258
20BUTTON – DECORATIVE PLUG
21TROUGH-DRAIN
22AWCI 5303001361
22WCI 5308000056
23BRACKET-LOWER HINGE, W/ HINGE PIN
23ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
23BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
24241710601 Frigidaire Refrigerator Screw
25WCI 5303212488
26WCI 5303212923
27Screw-leveling,(2)
28AWCI 5303207353
28WCI 5303210377
29BASE-CABINET
30PLUG-BUTTON, ALMOND, HINGE BRG HOLE
31WCI 5303001286
32WCI 5303001287
33TUBE-RUBBER
34A5304455650 Frigidaire Refrigerator Screw
34WCI 3001527
34BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
35SUPPORT-COIL COVER
36TRIM-CABINET CORNER, WHITE
