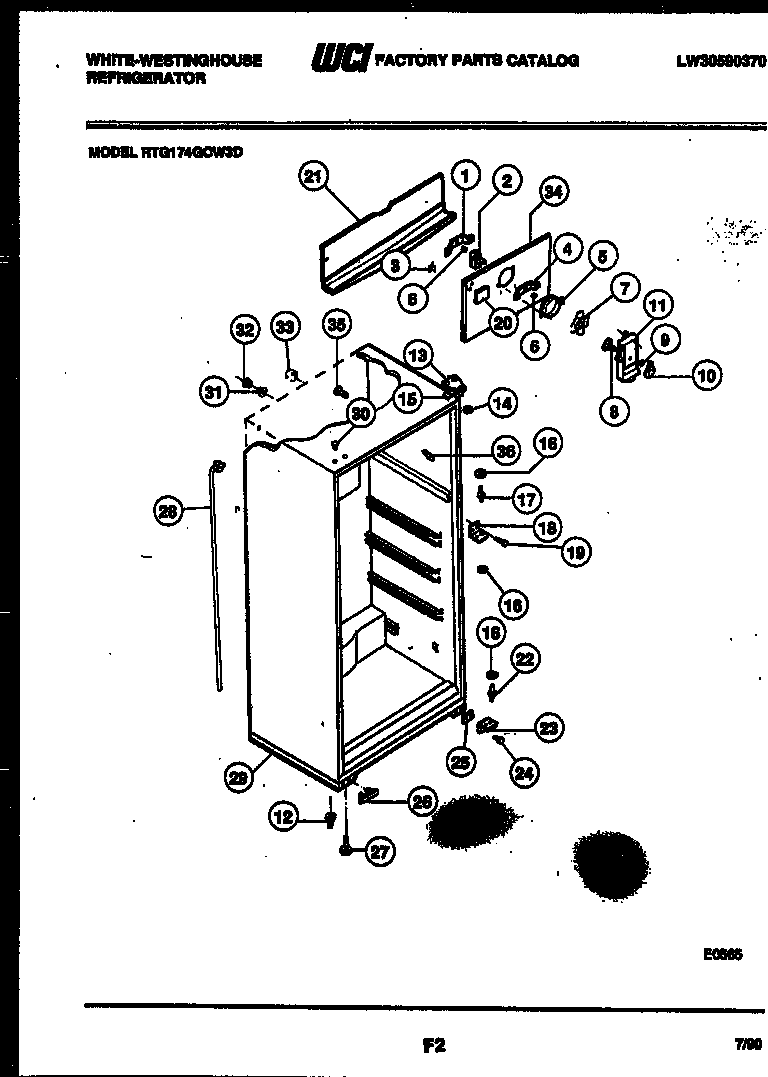

RTG174GCW3D 03 – CABINET PARTS

Products

Position	Product
*32992	BUTTON, LINER
1	WCI 3205119
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI 3205118
5	RING, FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER FAN COVER
9	NUT, DAMPER MOUNTING
10	WCI G162663-13
11B	LABEL-FAN COVER
11	WCI 3205739
12	NUT, ANCHOR (2)
13A	241710601 Frigidaire Refrigerator Screw
13	BRACKET, TOP HINGE
13B	TAPPING PLATE (2)
14	WCI G103903
15	WCI G183861
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW, BRACKET MOUNTING (4)
20	PLUG, DECORATIVE
21	TROUGH-DRAIN
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	HINGE-BRACKET-BOTTOM
24A	TAPPING, PLATE (2)
25	SHIM, HINGE
26	WCI G166912
27	LEG-LEVELING (2)
28B	SPOUT DRAIN TUBE
28	WCI 5303210377
28A	PIN-PUSH
28C	WCI 5303207353
29	WCI 08010091
30	WCI G174747–01
31	WCI G174733
32	WCI G174734
33	TUBE, INSULATION (2)
34C	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
34	COVER-COIL
34A	5304455650 Frigidaire Refrigerator Screw
34B	NUT, ORIFICE (2)
35	WCI G163669
36	WCI 3202336
