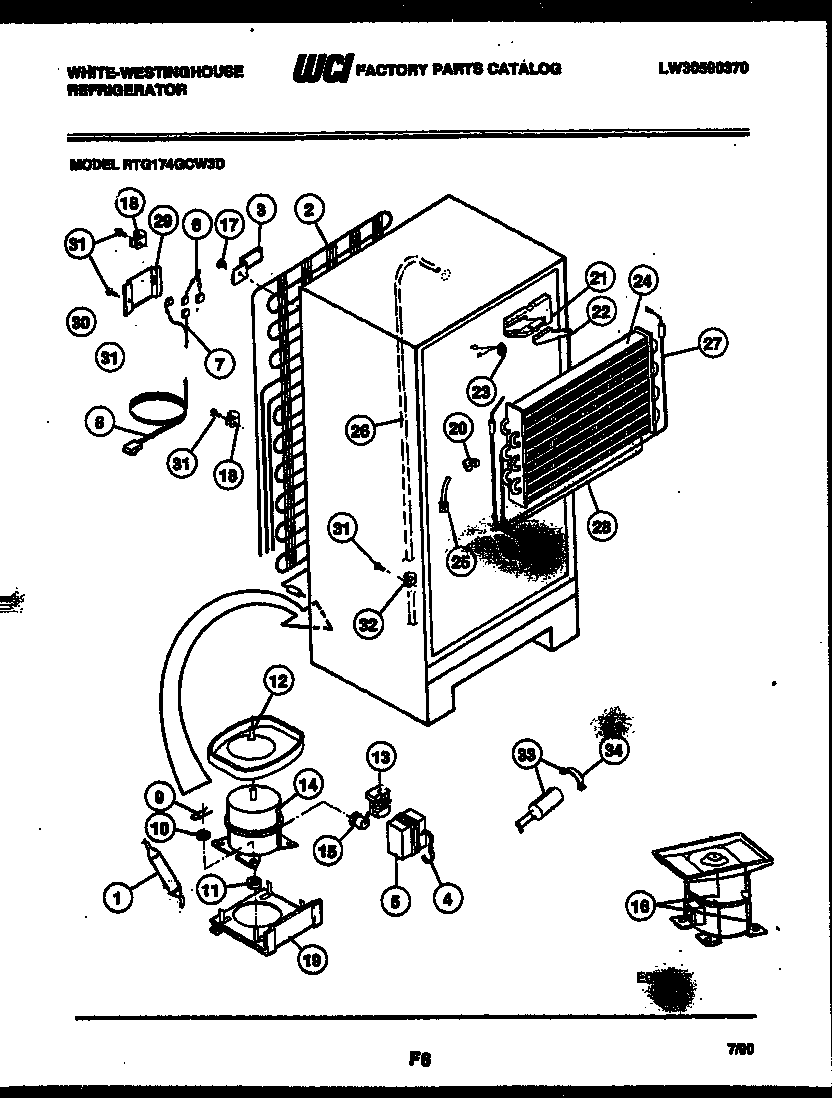

RTG174GCW3D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*33005HOT TUBE REPAIR KIT
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G178225
3BRACKET-CONDENSER MOUNTING (4)
3AWASHER
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6HARNESS, WIRING
7HARNESS-COMPRESSOR
8CORD, SERVICE
9CLIP, COMPRESSOR MOUNTING (4)
10WCI 08003633
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12DEFROST PAN & NUT
12ANUT, LOCK
12B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
13WCI 3007173
14COMPRESSOR W/ ELEC
15WCI 3206096
16WCI G167234
175308000039 Frigidaire Refrigerator Screw
19PLATE
20BLOCK, LEFT SIDE
21BLOCK, EVAPORATOR, RH
22PLUG, EVAPORATOR INSULATION BLOCK, R H
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24EVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26HEAT-EXCH
27WCI 08009754
28INSULATOR
29WCI G183584
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
32240396801 Frigidaire Refrigerator Tube Clamp
33CAPACITOR
34STRAP-CAPACITOR
