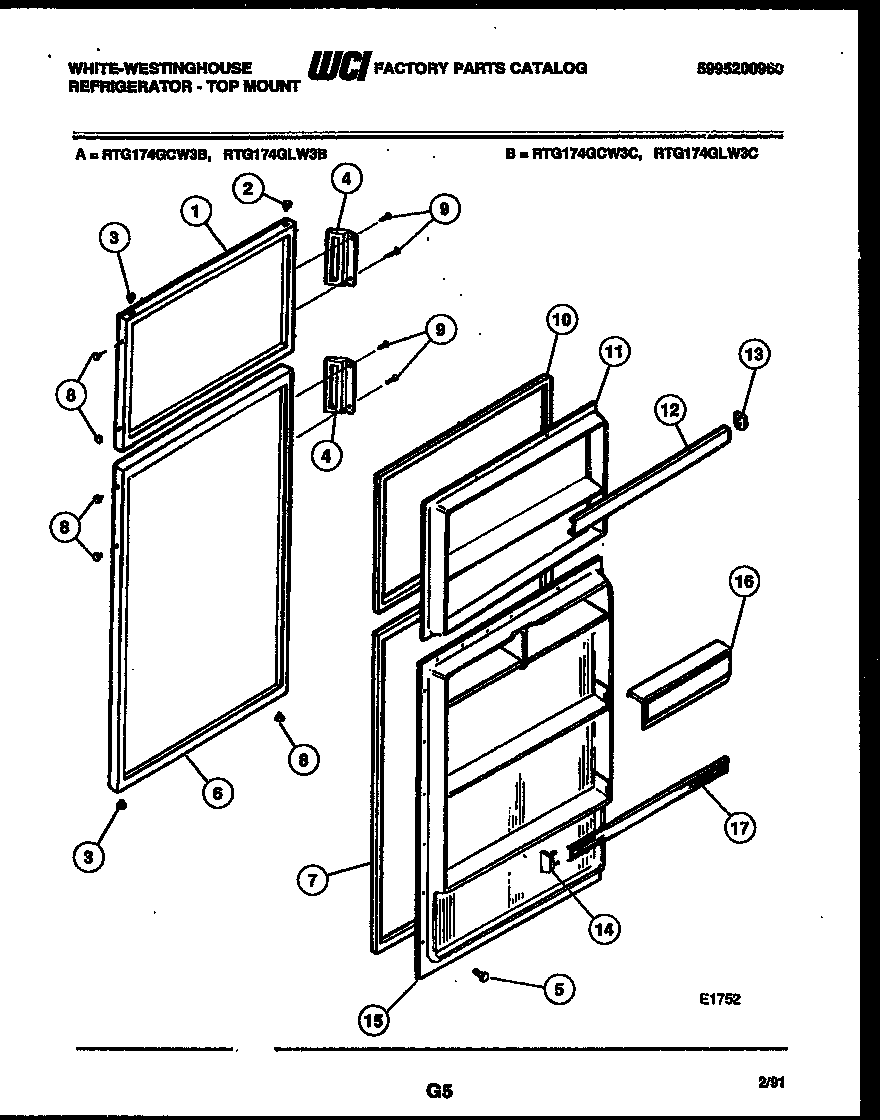

RTG174GLD3B 02 – DOOR PARTS

RTG174GLD3B 02 – DOOR PARTS

Written by

in

RTG174GLD3B 02 – DOOR PARTS

Products

PositionProduct
*42380INSULATION-BULK (NON-ILLUSTRATED)
*423795308000716 Frigidaire Refrigerator Dish
*42379215817806 Frigidaire Refrigerator Egg Tray
1WCI 3916551
2PLUG-BUTTON, ALMOND, HINGE BRG HOLE
3BEARING-HINGE
4WCI 3016496
55304455651 Frigidaire Refrigerator Screw
6WCI 3916556
7218730603 Frigidaire Door Gasket
8PLUG-BUTTON, ALMOND, HANDLE/DR STOP
9SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
10WCI 5303001399
11INNER PANEL-FRZR
12WCI 3206069
13WCI 5303007295
14WCI 5303007297
15PANEL-INNER REFR
16WCI G178500-09
16ADOOR-DAIRY SMALL LS (NON-ILLUSTRATED)
17WCI 3206074
