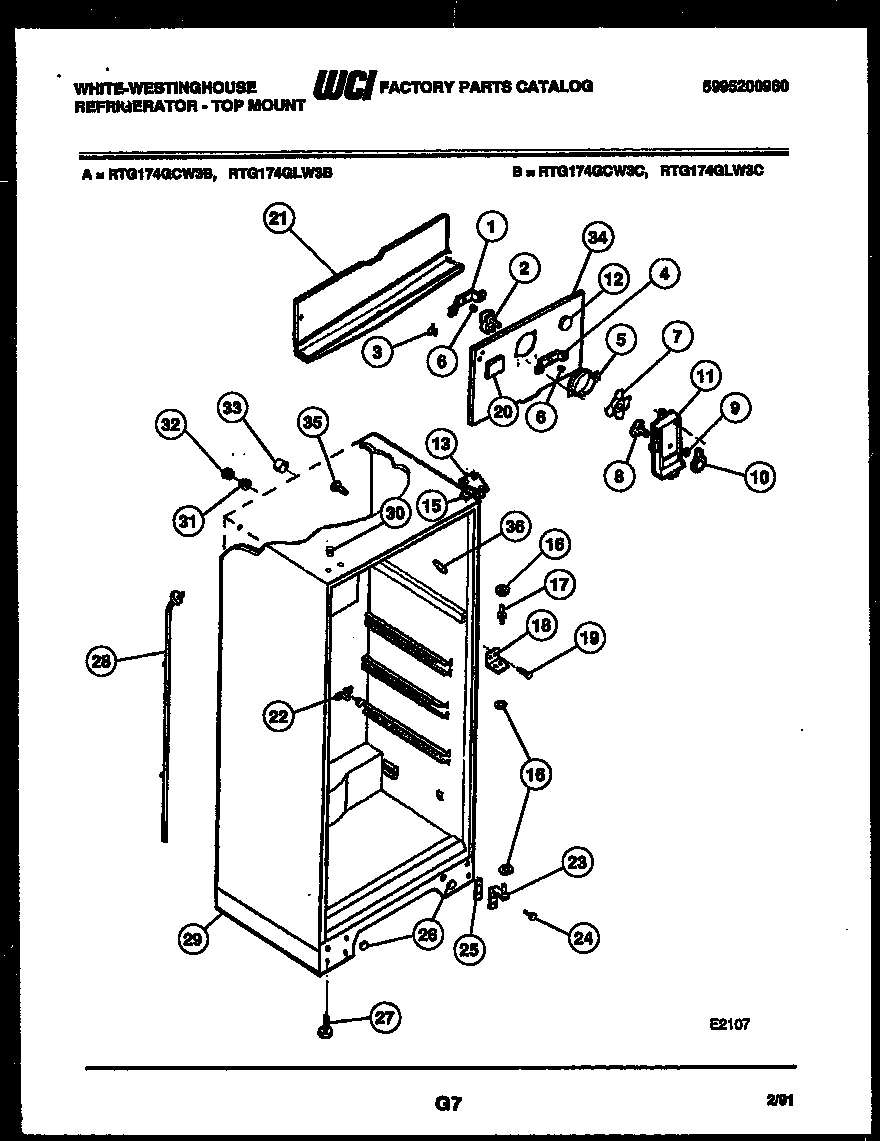

RTG174GLF3B 03 – CABINET PARTS

Products

Position	Product
*42391	PLUG, BUTTON, CABINET LINER (NI)
1	BRACKET-MOTOR MTG, REAR
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI 5308000107
4	WCI 5303001226
5A	5304455651 Frigidaire Refrigerator Screw
5	RING-FAN ORIFICE
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER-FAN COVER
9	Nut,push-on
10	KNOB-DAMPER CONTROL
11B	WCI G000187640
11	WCI 3205739
12	5303208309 Frigidaire Refrigerator Plug Hole
13	BRACKET-UPPER HINGE
13B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
15	SHIM - UPPER HINGE
16	WCI 5308000186
17	WCI 5308000184
18	BRACKET-CTR HINGE
19	WCI 5308012258
20	BUTTON - DECORATIVE PLUG
21	TROUGH-DRAIN
22A	WCI 5303001361
22	WCI 5308000056
23	BRACKET-LOWER HINGE, W/ HINGE PIN
24	241710601 Frigidaire Refrigerator Screw
25	WCI 5303212488
26	WCI 5303212923
27	Screw-leveling,(2)
28	WCI 5303210377
28A	WCI 5303207353
29	BASE-CABINET
30	PLUG, COFFEE
31	WCI 5303001286
32	WCI 5303001287
33	TUBE-RUBBER
34B	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
34	WCI 3001527
34A	5304455650 Frigidaire Refrigerator Screw
35	SUPPORT-COIL COVER
36	WCI 5303202339
