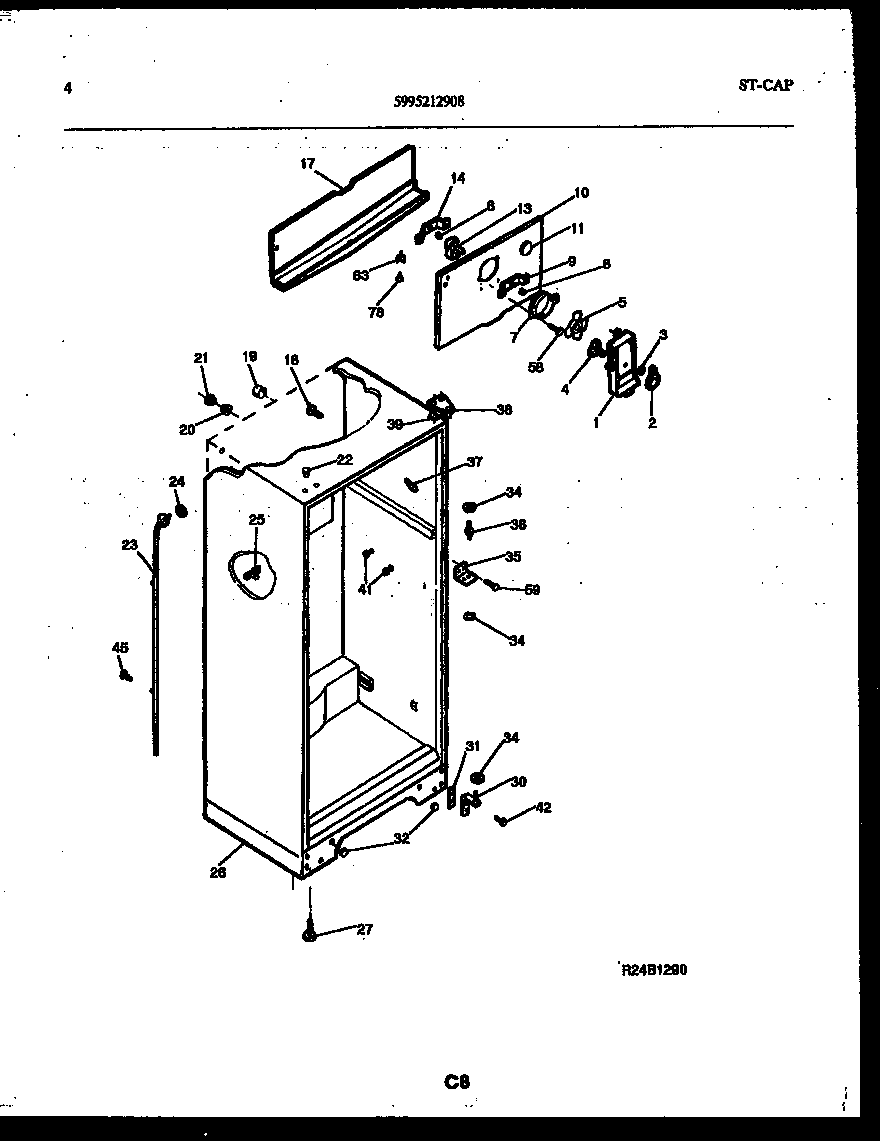

RTG215NCD0 03 – CABINET PARTS

Products

Position	Product
1	5304455650 Frigidaire Refrigerator Screw
1	WCI 5303281380
2	WCI 5308000081
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	COVER, COIL
10	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 5303001470
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	WCI 5303210377
24	WCI 5303207353
25	WCI 5308000056
25	WCI 5303001361
26	WCI 5303212487
27	Screw-leveling,(2)
30	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE, W/ HINGE PIN
31	WCI 5303212488
32	WCI 5303212923
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM - UPPER HINGE
41	5304509705 Frigidaire Refrigerator Grommet
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	241710601 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
59	WCI 5308012258
83	WCI 5308000107
53461	PLUG, BUTTON, CABINET LINER (NI)
