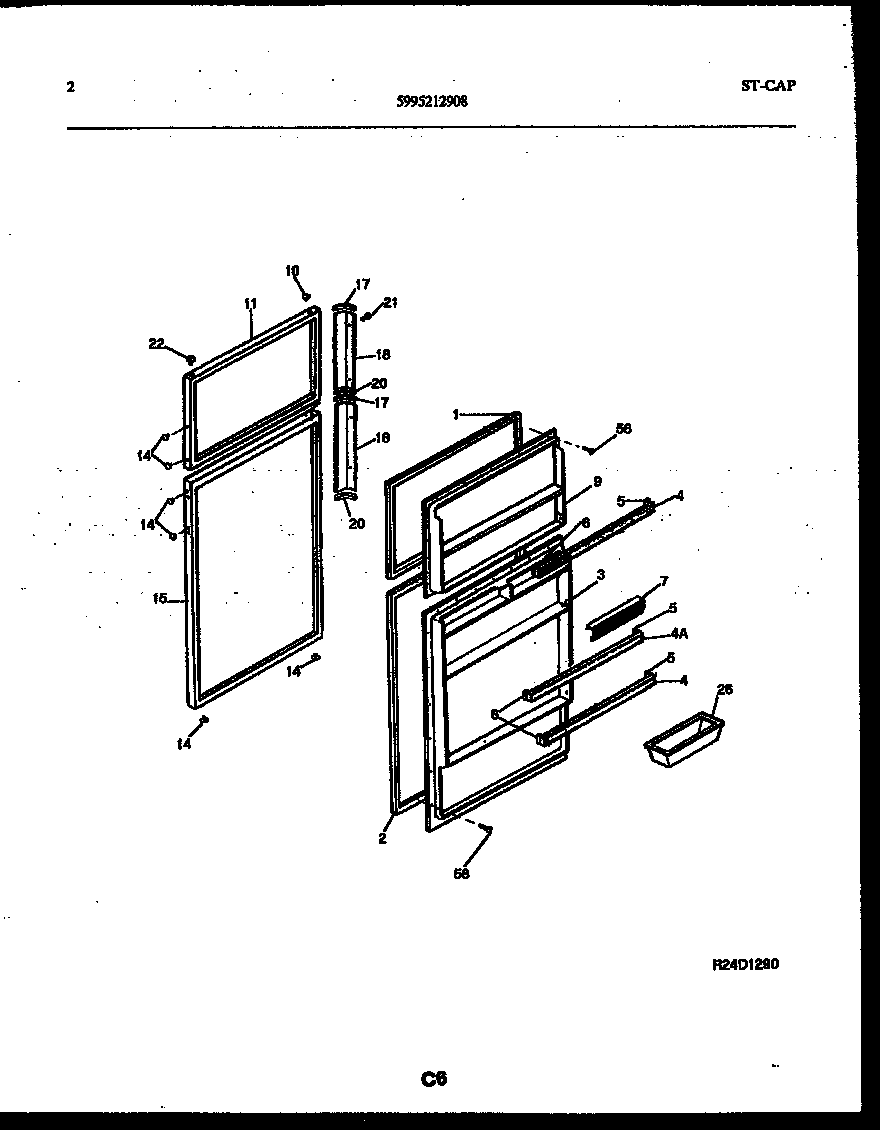

RTG215NCW0 02 – DOOR PARTS

RTG215NCW0 02 – DOOR PARTS

Written by

in

RTG215NCW0 02 – DOOR PARTS

Products

PositionProduct
*53457INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5308017483
2GASKET-REFR DOOR, BROWN, MAGNETIC
3WCI 5303281421
4WCI 5303281388
4AWCI 5303281387
5WCI 5303007295
6WCI 5303007297
7WCI 5303281382
9WCI 5303281420
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917056
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917058
17END CAP-BOTTOM (2)
18HANDLE
20WCI 5308010239
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22BEARING-HINGE
26WCI 3204522
585304455651 Frigidaire Refrigerator Screw
