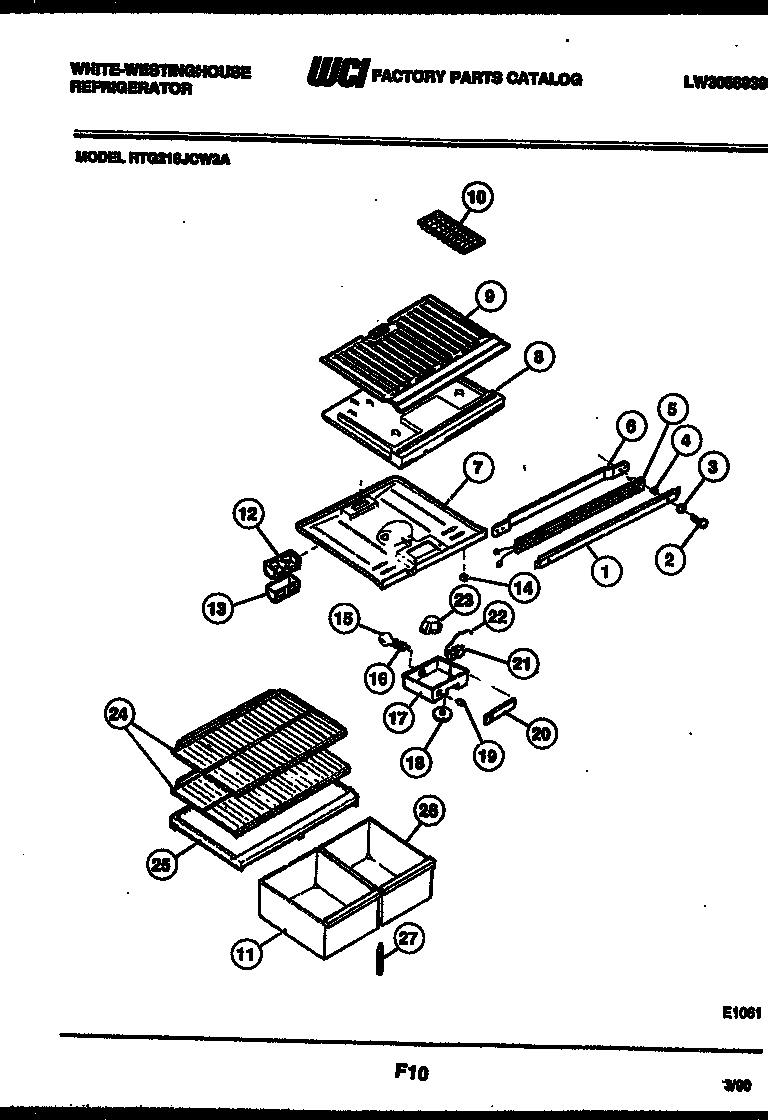

RTG216JCD3A 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 5303200370
2	SCREW, BRACKET MOUNTING (4)
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	SPACER-MULLION MTG, STEEL
5	WCI 5303018916
6	WCI 5308010008
7A	SCREW (5)
7	TOP-REFRIGERATOR
8	WCI 5308013674
8A	HARNESS-DIVIDER (NON-ILLUSTRATED)
9	BOTTOM PANEL-FRZR
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 5349001501
12	DEFLECTOR-AIR
13	COVER - AIR DEFLECTOR
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	SOCKET LIGHT
17	WCI 5308009730
17A	5304455650 Frigidaire Refrigerator Screw
18	WCI 08006978
19	SWITCH, SLIDE
20	LABEL-CONTROL BOX
21A	WCI G107080
21	WCI 5303200810
22	TUBE
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A	5304455649 Frigidaire Refrigerator Screw
24	WCI G191665-01
24A	END CAP-SHELF,PROTECTOR
25	COVER-CRISPER PAN
26	WCI G176639-22
27	SUPPORT, COVER
