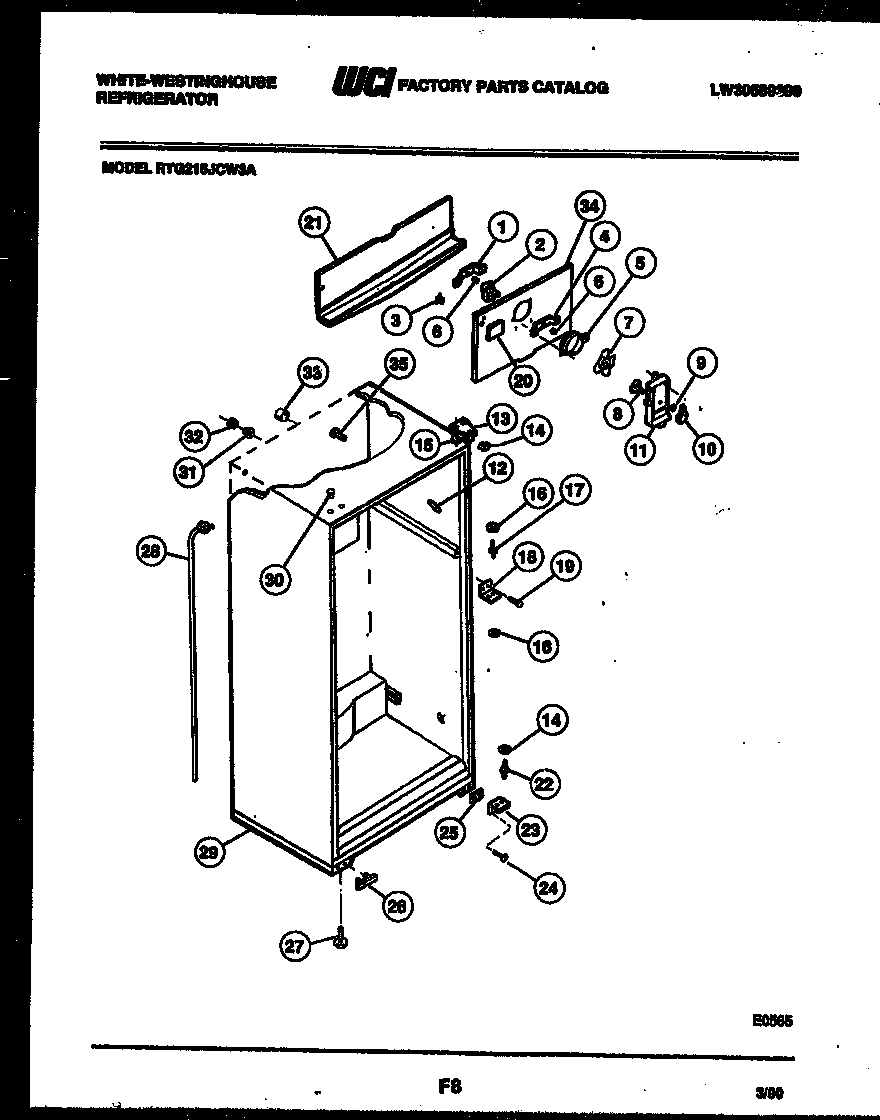

RTG216JCH3A 03 – CABINET PARTSadmin2025-04-26T10:23:29+00:00RTG216JCH3A 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *26337 | BUTTON, LINER |
| *26337 | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
| *26337 | 5304509705 Frigidaire Refrigerator Grommet |
| 1 | WCI G185303 |
| 2 | 5300158289 Frigidaire Evaporator Fan Motor |
| 3 | WCI G164571 |
| 4 | WCI G185302 |
| 5A | 5304455651 Frigidaire Refrigerator Screw |
| 5 | RING, FAN ORIFICE |
| 6 | G187559 Frigidaire Refrigerator Bushing |
| 7 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 8 | DAMPER FAN COVER |
| 9 | NUT, DAMPER MOUNTING |
| 10 | KNOB-DAMPER CONTROL |
| 11B | WCI G000180137 |
| 11 | WCI 5303208889 |
| 12 | WCI 5303202338 |
| 13 | BRACKET, TOP HINGE |
| 13A | 241710601 Frigidaire Refrigerator Screw |
| 14 | WCI G103903 |
| 15 | WCI G183861 |
| 16 | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 17 | WCI G142220 |
| 18 | BRACKET, HINGE CENTER |
| 19 | SCREW, BRACKET MOUNTING (4) |
| 20 | BUTTON - DECORATIVE PLUG |
| 21 | WCI 5303001470 |
| 22 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 23A | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 23 | HINGE BRACKET - BOTTOM |
| 25 | SHIM, HINGE |
| 26 | WCI G166912 |
| 27 | LEG-LEVELING (2) |
| 27A | NUT, ANCHOR (2) |
| 28C | WCI 5303207353 |
| 28 | WCI 5303001458 |
| 28A | WCI 5308000056 |
| 28B | WCI 5303001361 |
| 29 | CABINET BASE |
| 30 | WCI G174747-09 |
| 32 | WCI G174734 |
| 33 | TUBE, INSULATION (2) |
| 34B | NUT, ORIFICE (2) |
| 34 | COVER, COIL |
| 34A | 5304455650 Frigidaire Refrigerator Screw |
| 34C | WCI 5303203044 |
| 35 | WCI G163669 |
