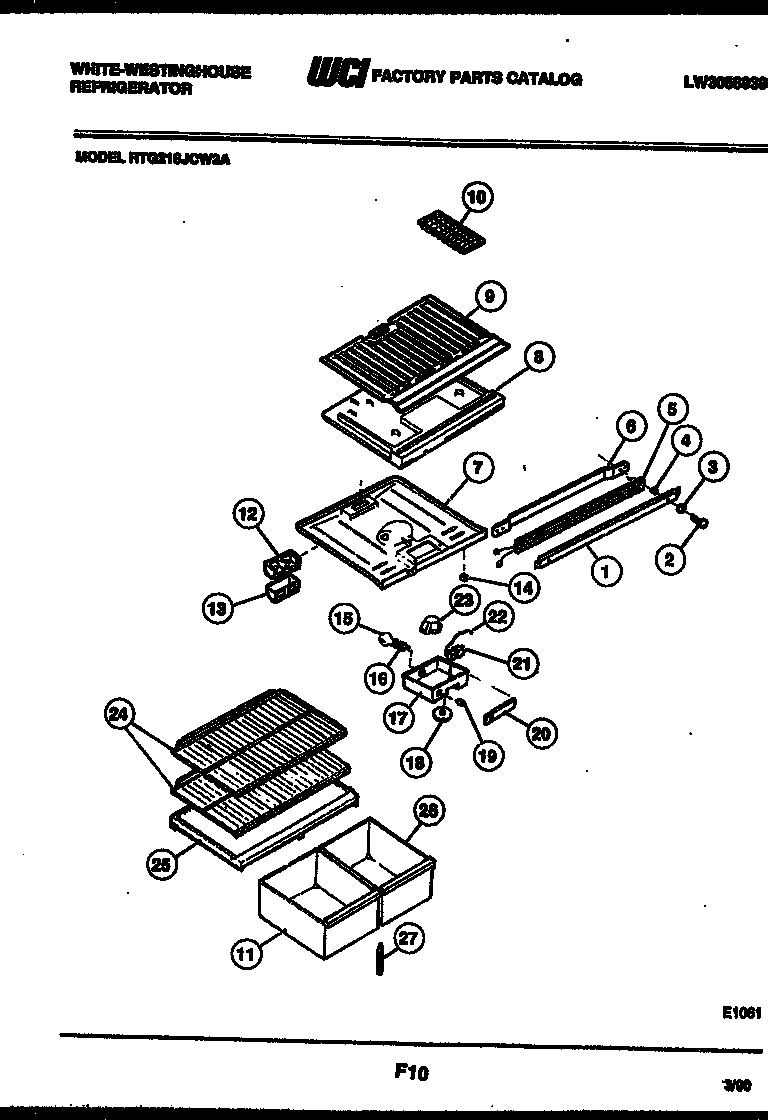

RTG216JCH3A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200368
2SCREW, BRACKET MOUNTING (4)
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303018916
6WCI 5308010008
7TOP-REFRIGERATOR
7ASCREW (5)
8WCI 5308013674
8AHARNESS-DIVIDER (NON-ILLUSTRATED)
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5349001501
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET LIGHT
17A5304455650 Frigidaire Refrigerator Screw
17WCI 5308009730
18WCI 08006978
19SWITCH, SLIDE
20LABEL-CONTROL BOX
21AWCI G107080
21WCI 5303200810
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI G191665-01
24AEND CAP-SHELF,PROTECTOR
25COVER-CRISPER PAN
26WCI G176639-22
27SUPPORT, COVER
