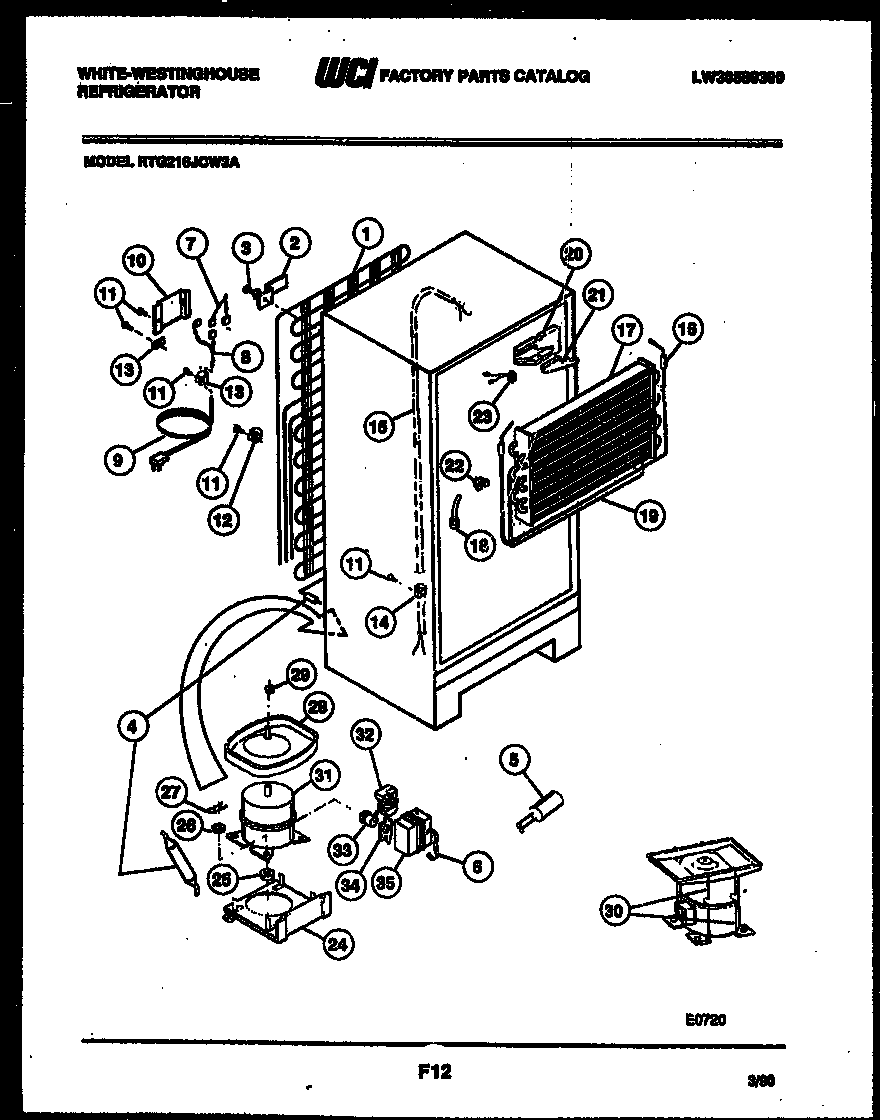

RTG216JCV3A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 5300163133
1A	HOT TUBE REPAIR KIT-SERVICE
1B	5303017691 Frigidaire Refrigerator Spacer-Tube
2	BRACKET-CONDENSER MOUNTING (4)
2A	WASHER
3	5308000039 Frigidaire Refrigerator Screw
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	CAPACITOR
6	STRAP-BALE
7	HARNESS-DIVIDER (NON-ILLUSTRATED)
8	HARNESS-COMPRESSOR
9	CORD-ELECTRIC POWER
10	WCI G183584
11	5304455651 Frigidaire Refrigerator Screw
12	5308000133 Frigidaire Refrigerator Clamp
13	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
14	240396801 Frigidaire Refrigerator Tube Clamp
15	WCI 5308000728
16	5317842502 Frigidaire Defrost Heater
17	WCI 5300162506
18	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
19	INSULATOR-EVAP
20	BLOCK, EVAPORATOR, RH
21	PLUG, EVAPORATOR INSULATION BLOCK, R H
22	BLOCK, LEFT SIDE
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	PLATE-COMPR MTG
25	218513300 Frigidaire Refrigerator Compressor Mount Grommet
26	WASHER, COMPRESSOR MOUNTING (4)
27	CLIP, COMPRESSOR MOUNTING (4)
28	DEFROST PAN
28B	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28A	DEFROST PAN & NUT
29	NUT, LOCK
30	PAN RETAINER KIT-SERVICE
31	WCI 3916012
32	RELAY-TL
33	WCI 3202863
34	WCI 3202891
35	WCI 08016583
