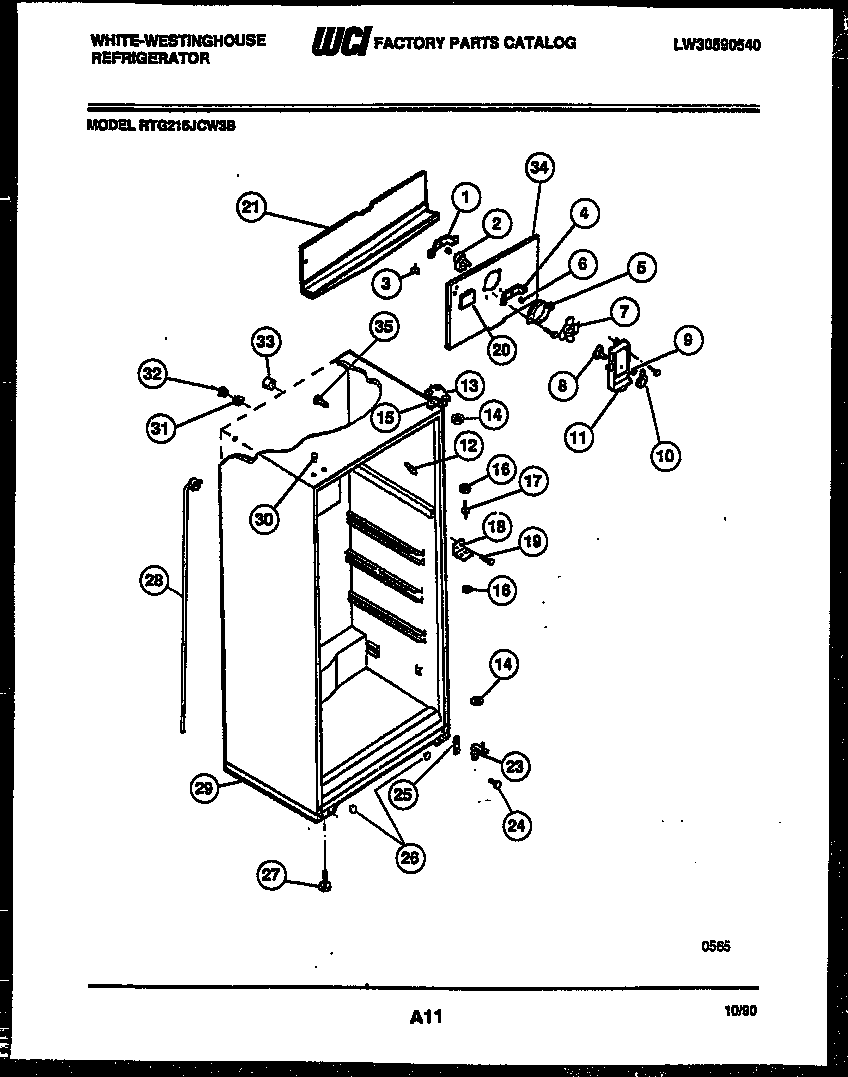

RTG216JCW3B 03 – CABINET PARTS

RTG216JCW3B 03 – CABINET PARTS

Written by

in

RTG216JCW3B 03 – CABINET PARTS

Products

PositionProduct
*40166PLUG, BUTTON, CABINET LINER (NI)
*401675304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*401665304509705 Frigidaire Refrigerator Grommet
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3WCI 5308000107
4WCI 5303001226
5A218843801 Frigidaire Refrigerator Screw
5RING-FAN ORIFICE
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8DAMPER-FAN COVER
9Nut,push-on
10KNOB-DAMPER CONTROL
11WCI 5303208889
11BWCI G000180137
12TRIM-CABINET CORNER, WHITE
13BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
13BRACKET-UPPER HINGE
14WASHER, .34 X .62 X .05, NYLON
15SHIM – UPPER HINGE
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 5308012258
20BUTTON – DECORATIVE PLUG
21WCI 5303001470
23BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
23ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
23BRACKET-LOWER HINGE, W/ HINGE PIN
24241710601 Frigidaire Refrigerator Screw
25WCI 5303212488
26WCI 5303212923
27Screw-leveling,(2)
28BWCI 5303001361
28AWCI 5308000056
28WCI 5303210377
28CWCI 5303207353
29WCI 5303212487
30PLUG-BUTTON, WHITE
31WCI 5303001286
32WCI 5303001287
33TUBE-RUBBER
34COVER, COIL
34CWCI 5303203044
34BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
34A5304455650 Frigidaire Refrigerator Screw
35SUPPORT-COIL COVER
