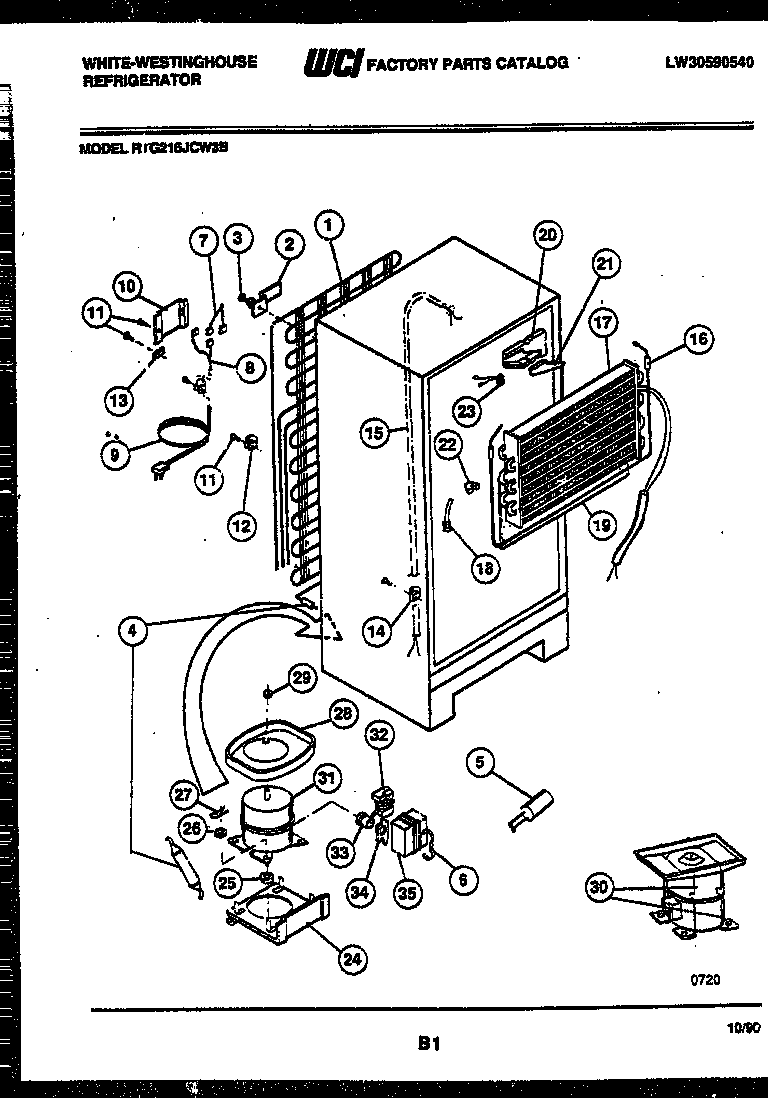

RTG216JCW3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1AHOT TUBE REPAIR KIT-SERVICE
1B5303017691 Frigidaire Refrigerator Spacer-Tube
1WCI 5300163133
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET-MTG (4)
35308000039 Frigidaire Refrigerator Screw
45303305677 Frigidaire Replacement Filter Dryer Filters
5CAPACITOR
6WCI 5303211232
7HARNESS-DIVIDER (NON-ILLUSTRATED)
8WIRING HARNESS, COMPRESSOR,
9CORD-ELECTRIC POWER
10WCI 5303001197
115304455651 Frigidaire Refrigerator Screw
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145308000133 Frigidaire Refrigerator Clamp
15WCI 5308000728
165317842502 Frigidaire Defrost Heater
17WCI 5300162506
185308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
19INSULATOR-EVAP, PLASTIC
20INSULATION BLOCK, RH
21INSULATION PLUG, RH
22INSULATION BLOCK, LH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI 5308013663
25218513300 Frigidaire Refrigerator Compressor Mount Grommet
26WASHER-COMPR MTG
27CLIP – COMPRESSOR MTG
28B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28APAN-DEFROST DRAIN, ORIG/SVCE COMPR
28PAN-DEFROST-ORIG COMPRESSOR
29Nut,lock `1/4-20 ,drain pan mtg
30PAN RETAINER KIT-SERVICE
31COMPRESSOR W/ ELECTRICALS
32RELAY-TL
33WCI 3206096
34WCI 3202891
35WCI 5303209254
