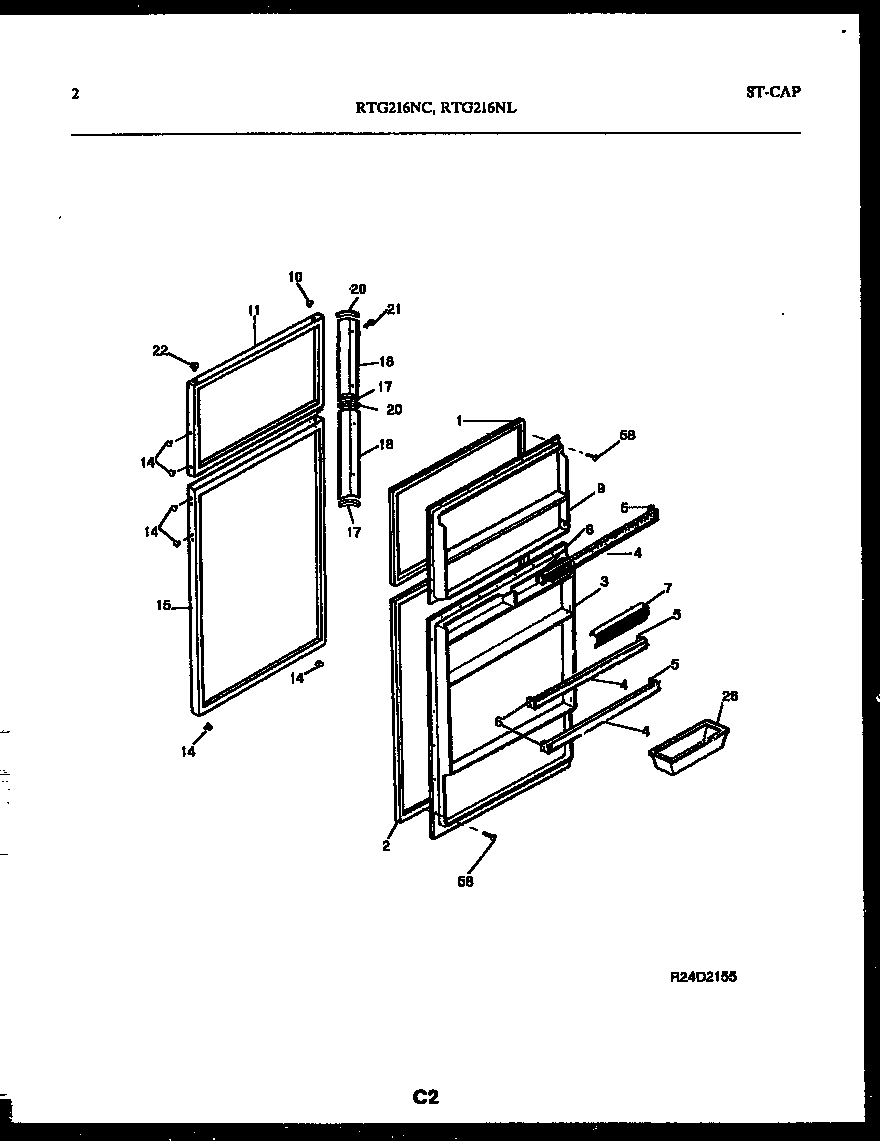

RTG216NCD1 02 – DOOR PARTS

RTG216NCD1 02 – DOOR PARTS

Written by

in

RTG216NCD1 02 – DOOR PARTS

Products

PositionProduct
*63006INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5308017483
2GASKET-REFR DOOR, BROWN, MAGNETIC
3WCI 5303212482
4WCI 5303281388
5WCI 5303007295
6WCI 5303007297
7WCI 5303281382
9WCI 5318540802
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917057
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917059
17END CAP-BOTTOM (2)
18HANDLE
20WCI 5308010239
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22BEARING-HINGE
26WCI 3204522
585304455651 Frigidaire Refrigerator Screw
