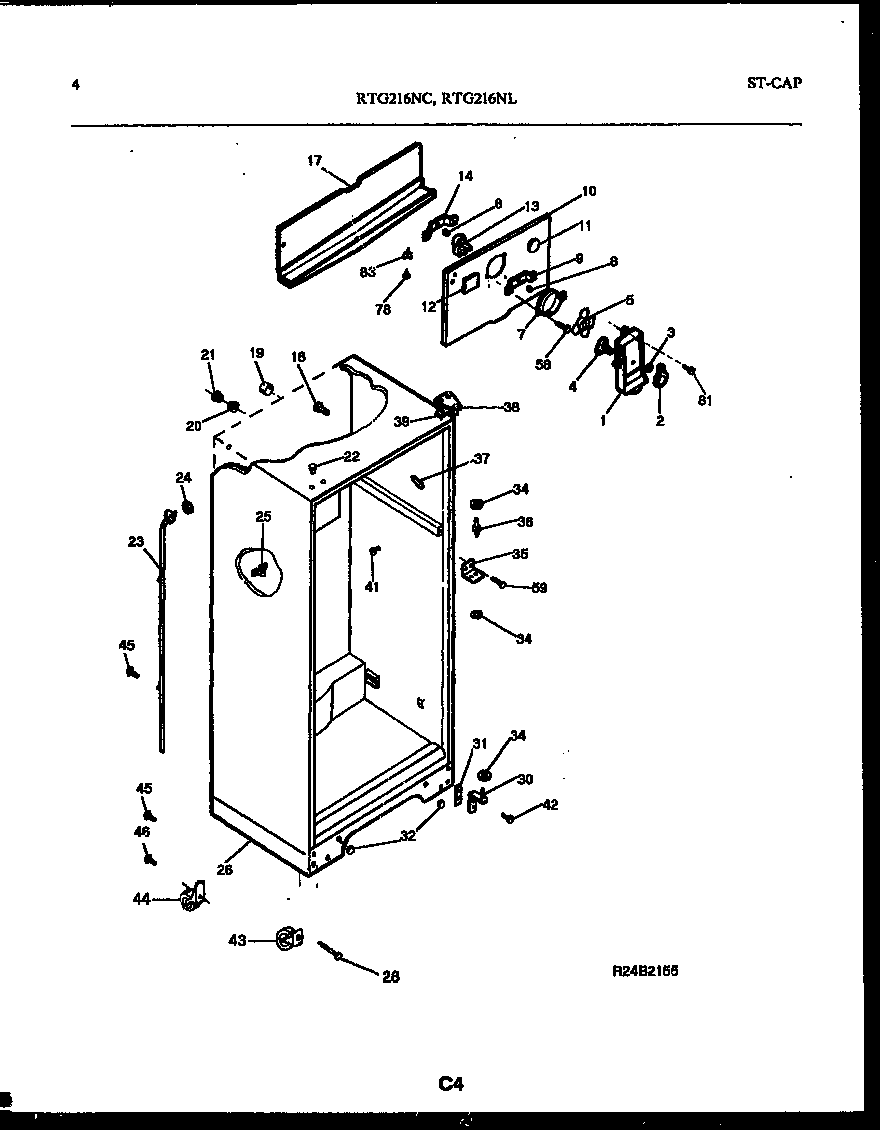

RTG216NCW1 03 – CABINET PARTS

RTG216NCW1 03 – CABINET PARTS

Written by

in

RTG216NCW1 03 – CABINET PARTS

Products

PositionProduct
1WCI 5303281380
2WCI 5308000081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 5303209636
10COVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23WCI 5303210377
24WCI 5303207353
25WCI 5308000056
25WCI 5303001361
26WCI 5303212487
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
30TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30BRACKET-LOWER HINGE, W/ HINGE PIN
30TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
31WCI 5303212488
32WCI 5303212923
34WCI 5308000186
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
38TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5303212490
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
63012PLUG, BUTTON, CABINET LINER (NI)
