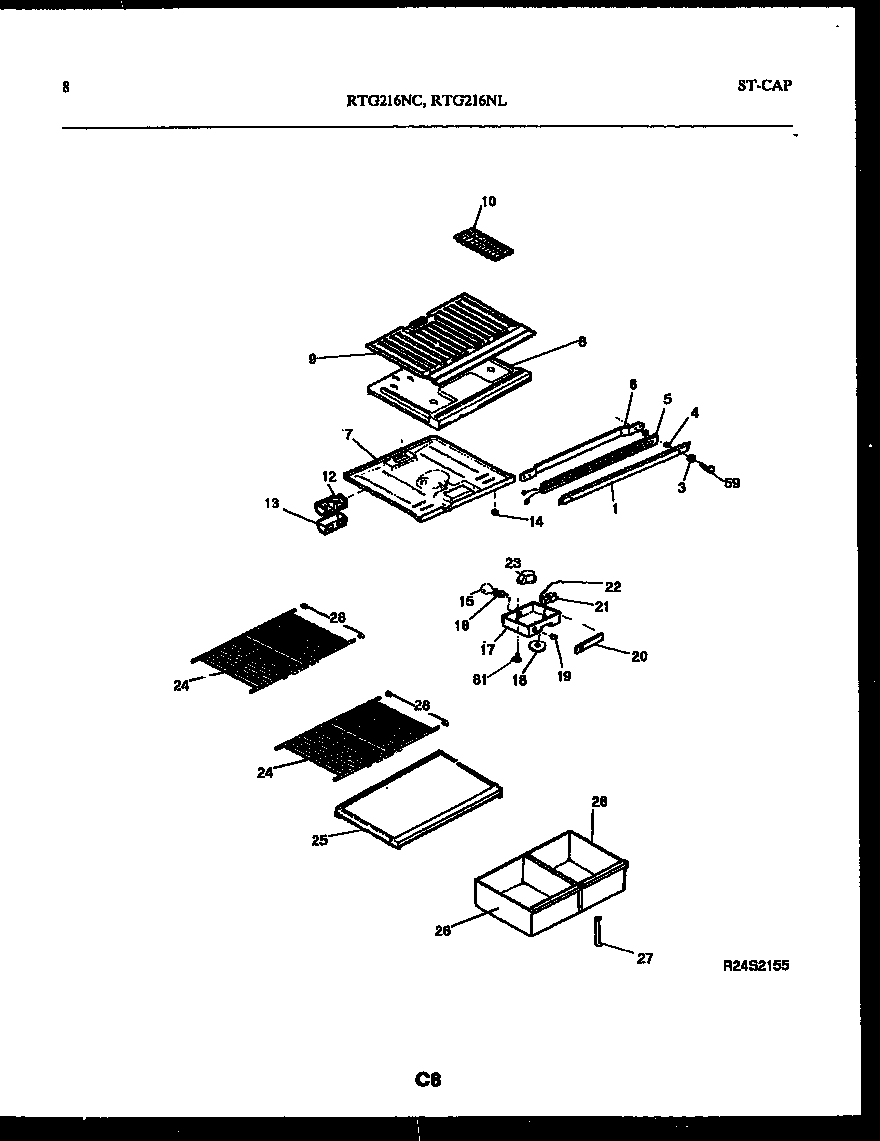

RTG216NLW1 05 – SHELVES AND SUPPORTS

RTG216NLW1 05 – SHELVES AND SUPPORTS

Written by

in

RTG216NLW1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 5303001380
7BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP-REFRIGERATOR
8WCI 5308013674
8HARNESS-DIVIDER (NON-ILLUSTRATED)
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 08016567
17WCI 5317465503
18WCI 3018569
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 3201122
21WCI 5303001260
21WCI 5303200810
22TUBE
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, FIXED, FULL WIDTH, WIRE, REFR SECTION
25COVER-CRISPER PAN
26WCI 3018914
26WCI 3018915
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
