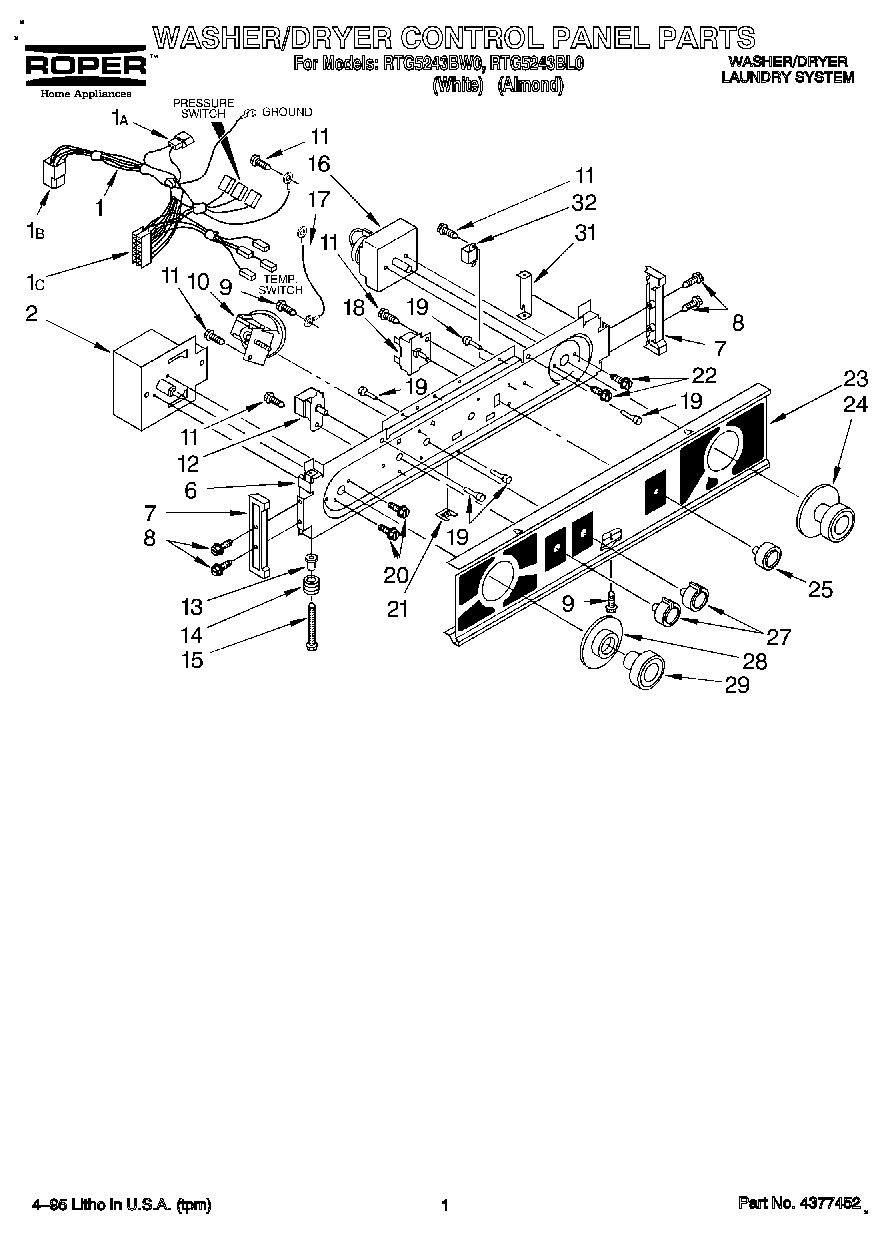

RTG5243BL0 01 – WASHER/DRYER CONTROL PANEL

Products

Position	Product
1	Harness, Console Wiring (Automatic) (Includes Illus. 1A, 1B & 1C)
1C	W10876590 Whirlpool Connector
1B	696073 Whirlpool Connector
1A	3350130 Whirlpool Connector
2	WP3946432 Whirlpool Timer
6	Bracket, Control
7	End Cap, Console (L.H. & R.H.)
8	NAMEPLATE
9	WP694091 Whirlpool Screw
10	WP3362987 Whirlpool Washer Water Level Switch
11	WP3390631 Whirlpool Screw
12	Switch, Water Temperature
13	693711 Whirlpool Sleeve
14	WP693151 Whirlpool Lock Spring
15	Screw, Console Lock (2)
16	Timer, Control (60 Hz.) (Dryer) (Timer Motor Not Serviceable)
17	Strut, Console
18	Switch, Push-To-Start
19	693152 Whirlpool Bumper
20	WP356418 Whirlpool Screw
21	694037 Whirlpool Clip
22	WP3400882 Whirlpool Screw
23	Panel, Control
24	Knob, Timer (Dryer)
25	Knob, Push-To-Start
27	Knob, Temperature
28	Dial, Timer
29	280193 Whirlpool Timer Knob
31	WP692983 Whirlpool Console Lock
32	WP694419 Whirlpool Buzzer Adjuster
