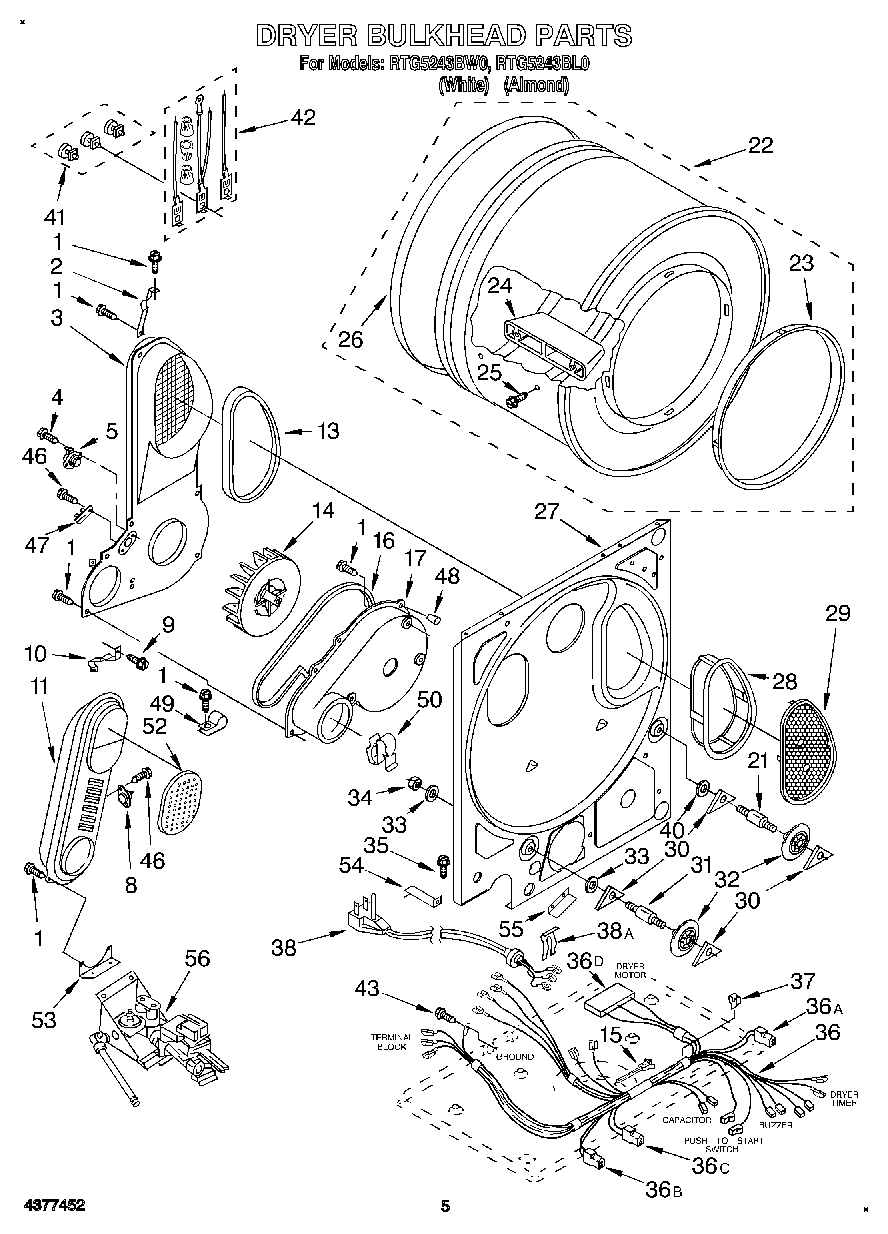

RTG5243BW0 04 – DRYER BULKHEAD

Products

Position	Product
1	SCREW
2	345396 Whirlpool Clip
3	696529 Whirlpool Air Duct
4	WP488729 Whirlpool Refrigerator Door Screw
5	THRMST-FIX
8	Thermostat, 205 F (96 C)
9	WP489463 Whirlpool Refrigerator Screw
10	279771 Whirlpool Clip
11	280007 Whirlpool Heater Box
13	SEAL
14	WP696426 Whirlpool Wheel
15	WP3391018 Whirlpool Wire Tie
16	Seal, Fan Scroll
17	WP696418 Whirlpool Fan Scroll
21	SHAFT SUPPORT ROLLER DRYER
22	3391834 Whirlpool Drum
23	WP3394508 Whirlpool Bearing Ring
24	685207 Whirlpool Dryer Baffle
25	WPW10109200 Whirlpool Screw
26	SEAL
27	Bulkhead
28	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31	SHAFT SUPPORT ROLLER DRYER
32	349241T Whirlpool Dryer Drum Support Roller Kit
33	WP348197 Whirlpool Washer Assembly
34	WP3359452 Whirlpool Nut
35	WP3390631 Whirlpool Screw
36C	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
36	Harness, Main Dryer Wiring (Includes Nos.36A, 36B, 36C & 36D)
36B	Receptacle, (Gas Valve)
36D	3395683 Whirlpool Connector
36A	Receptacle, Latching (2-Way) (Uses Terminal 94614)
37	CLIP
38	WPW10581952 Whirlpool Power Cord
38A	W11712577 Whirlpool Clip
40	WP3388703 Whirlpool Washer
41	279393 Whirlpool Terminal Block Screw and Nut Kit
42	279318 Whirlpool Terminal
43	W10850756 Whirlpool Screw
46	WP90767 Whirlpool Screw
47	WP3392519 Whirlpool Dryer Thermal Fuse
48	W10491983 Whirlpool Tine Tip
49	488946 Whirlpool Air Conditioner Clamp
50	WP3400935 Whirlpool Dishwasher Clip
52	345335 Whirlpool Cover
53	347455 Whirlpool Support Assembly
54	WPL 3387208
55	WPL 697571
56	WPL 3401796
