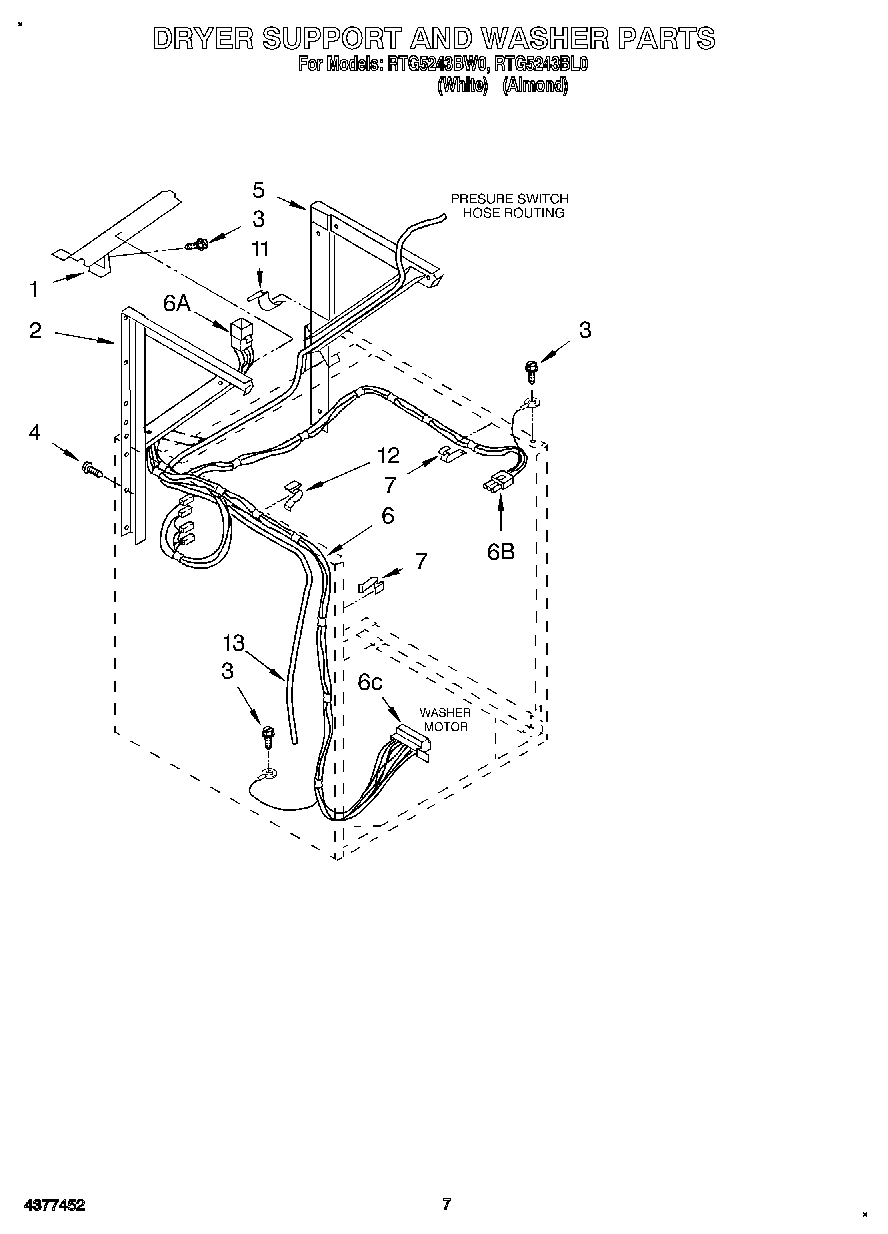

RTG5243BW0 05 – DRYER SUPPORT AND WASHER

Products

Position	Product
1	694304 Whirlpool Channel Cover
2	W11174025 Whirlpool Support Assembly
3	SCREW
4	W11676450 Whirlpool Screw
5	W11174024 Whirlpool Support
6C	WP62505 Whirlpool Connector
6A	Plug, Terminal (12-Way) (Connects With Automatic Console Harness)
6B	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
6	Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
7	8528351 Whirlpool Clip
11	WP90016 Whirlpool Clip
12	CLIP
13	W10834213 Whirlpool Hose
