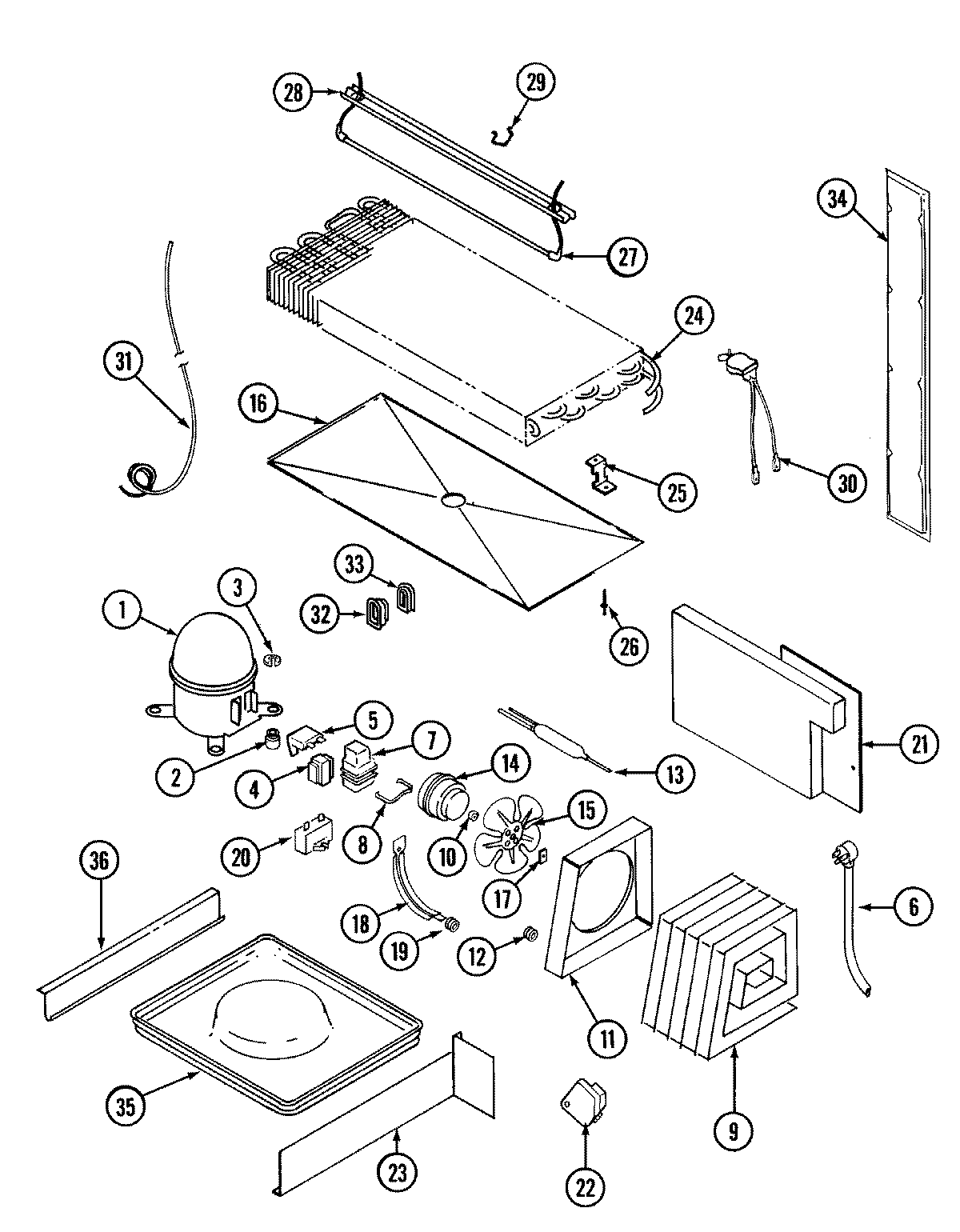

RTM1500DAE 09 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
NI	MAY 16000327
NI	MAY 61001201
1	MAY RA1032
1	MAY RA1011-1
2	MAY 17245-4
3	MAY 62165-1
4	2154436 Whirlpool Refrigerator Start Relay
4	WP10097202 Whirlpool Refrigerator Start Device
5	MAY 69105-10
5	4388953 Whirlpool Overload Relay
6	MAY 52890-3
7	MAY 69754-1
7	MAY 66589-2
8	MAY 65886-1
8	MAY 59596-1
9	MAY 414001-1
9	MAY 60434-3
9	MAY 60408-2
10	MAY 69063-1
11	MAY 66228-1
12	MAY 53351-1
13	MAY 13900
14	MAY 65275-33
14	MAY 61001562
14	MAY 68445-3
15	WP12587601 Whirlpool Refrigerator Condenser Blade
16	MAY 69118-1
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	MAY 56933-1
20	WP65889-4 Whirlpool Refrigerator Capacitor
20	WP2262343 Whirlpool Refrigerator/Freezer Capacitor
21	MAY 66338-3
21	WP488729 Whirlpool Refrigerator Door Screw
22	MAY 405007-1
22	MAY 68233-1
23	MAY 66493-1
24	MAY 69822-1
25	MAY 60108-2
26	MAY 26397-9
27	WP60106-34 Whirlpool Refrigerator Heater
28	MAY 60109-4
29	MAY 68935-1
30	WP52085-28 Whirlpool Thermostat
31	MAY 61001042
31	MAY 65013-26
32	MAY 60068-1
33	MAY 60069-1
34	MAY 61001200
34	MAY 61001560
34	MAY 70162-1
34	MAY 65275-50
34	MAY 60177-4
36	WP489478 Whirlpool Refrigerator Screw
36	MAY 60555-1
36	MAY 60555-2
