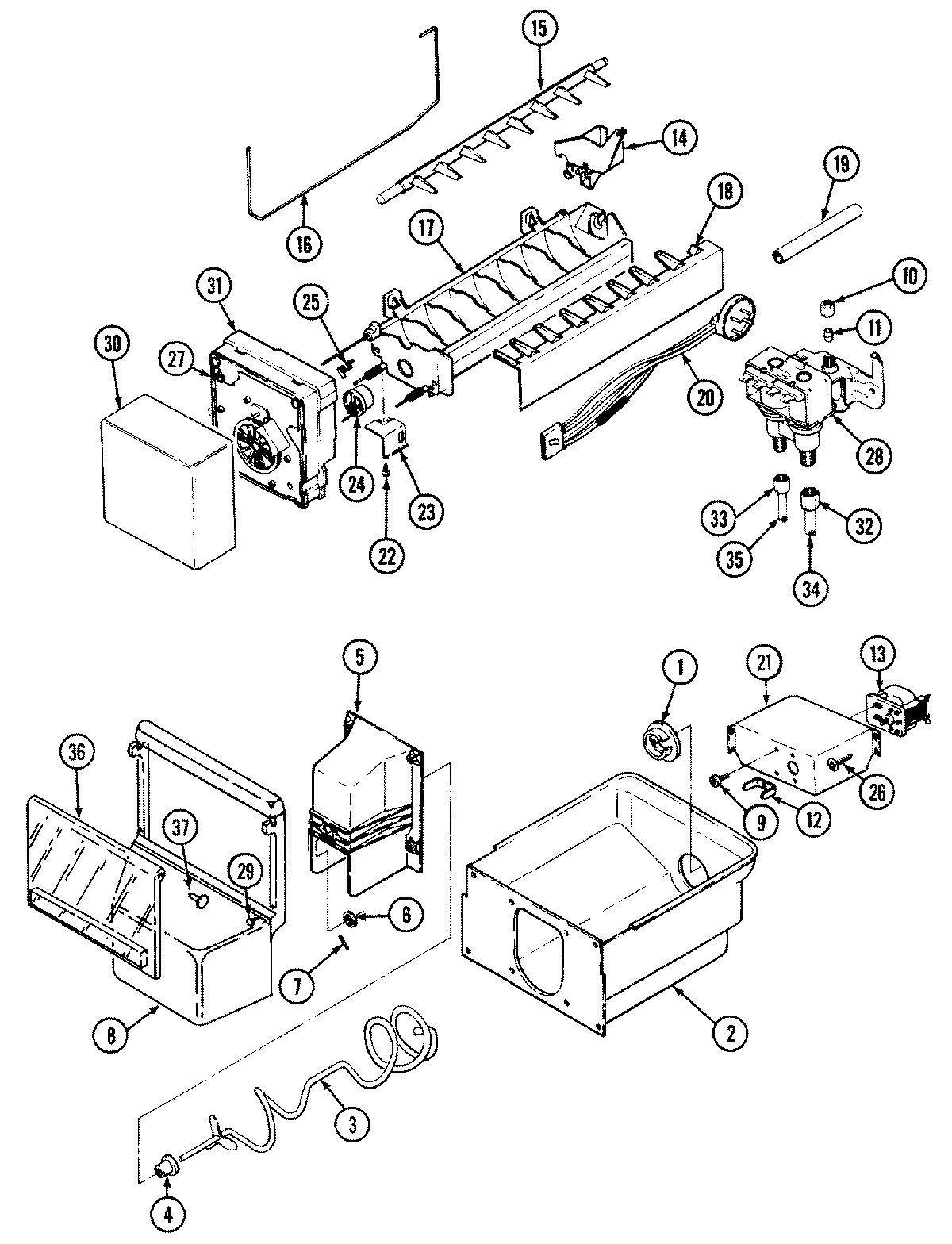

RTW22E1CAL 04 – ICE MAKER & BIN

RTW22E1CAL 04 – ICE MAKER & BIN

Products

PositionProduct
1WP61003336 Whirlpool Refrigerator Drive Ring
2MAY 67831-1
3MAY 67833-1
4MAY 67172-2
5MAY 67832-1
6MAY 67834-2
7MAY 492007-703
8MAY 69875-14
8415013-35 Whirlpool Refrigerator Screw
9MAY 406026-103
10WP245183 Whirlpool Nut
11WP487627 Whirlpool Refrigerator Sleeve
12WP63052-2 Whirlpool Refrigerator Impeller
1312001773 Whirlpool Refrigerator Primary Auger Motor Y Assembly
13MAY 67701-1
14WP628356 Whirlpool Refrigerator Fill Cup
15WP627843 Whirlpool Refrigerator Ejector Arm
16W11342242 Whirlpool Refrigerator Ice Level Arm
17D7824706Q Whirlpool Refrigerator Ice Maker Assembly
18WP2182124 Whirlpool Refrigerator Stripper Arm
19MAY 67666-2
20MAY 70076-1
21MAY 67347-1
22MAY 95108-1
23BRACKET, MODULE & HEATER
24MAY 95093-1
24WP627985 Whirlpool Icemaker Cycling Thermostat
25WP2315522 Whirlpool Refrigerator Clip
26MAY 400026-36
27MAY 400021-1
27MAY 95109-1
28MAY 401018-1
28MAY 69825-1
29MAY 28272-6
30MAY 68328-2
31SCREW
31WP2195914 Whirlpool Refrigerator Ice Maker Housing
32MAY 69583-2
33WP627018 Whirlpool Refrigerator Nut
34MAY 67187-13
35W10833902 Whirlpool Refrigerator Clamp
35MAY 67579-7
36MAY 69920-13
37WP61006081 Whirlpool Refrigerator Top Cover
