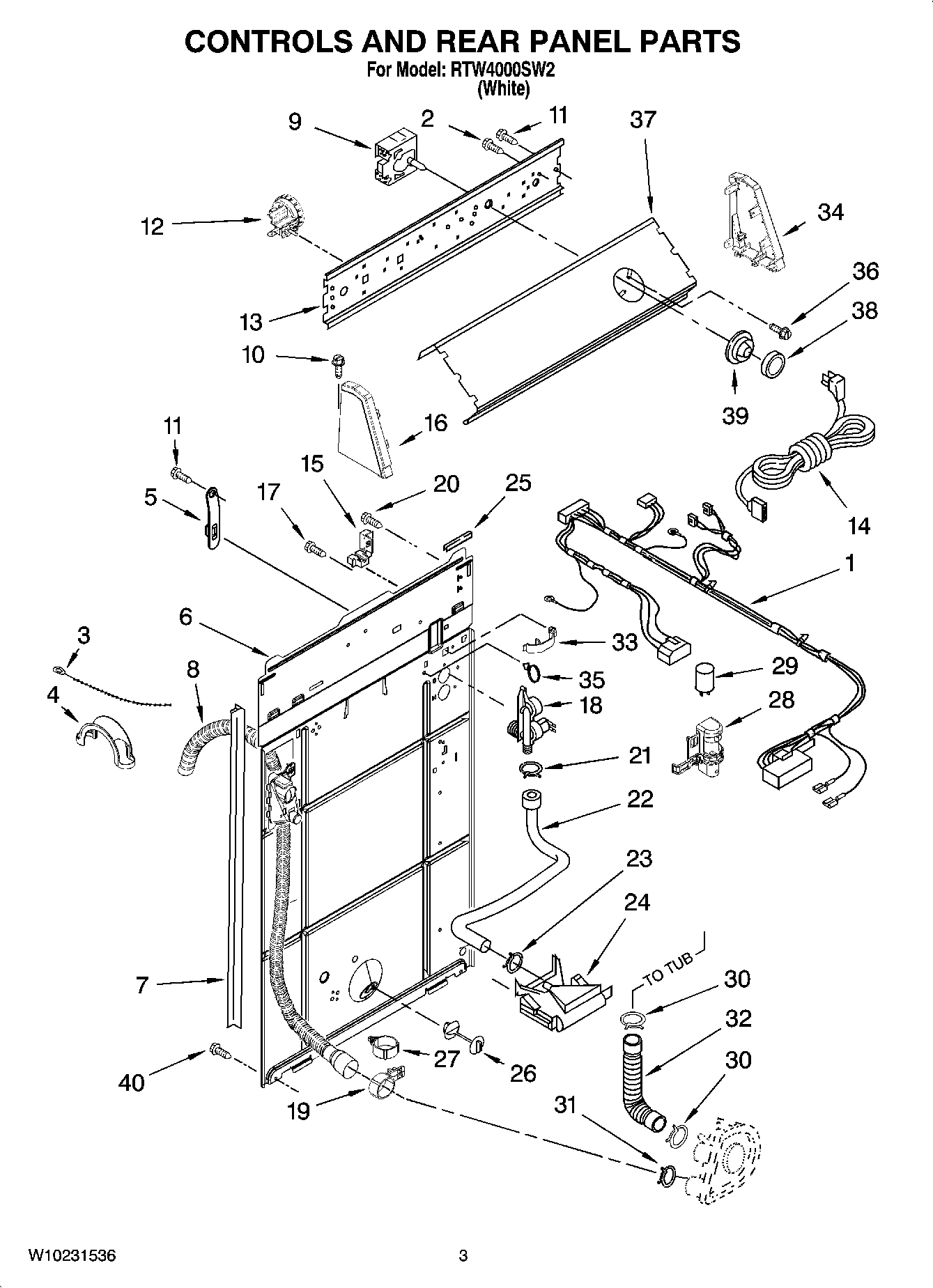

RTW4000SW2 02 – CONTROL AND REAR PANEL PARTS

Products

PositionProduct
1Harness, Wiring (For Detail See Pages 9 & 10)
23400073 Whirlpool Screw
3WPW10339879 Whirlpool Wire Tie
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8WPW10096921 Whirlpool Hose
9WP8546681 Whirlpool Timer
10WP388326 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339332 Whirlpool Washer Water Level Switch
13Bracket, Control
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.)
17WP9740848 Whirlpool Dishwasher Screw
18WP8541697 Whirlpool Valve
198541668 Whirlpool Washer Clamp
20WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Edge Protector
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28Clip, Capacitor
29CAPACITOR
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness
34Cap, End (R.H.)
358559320 Whirlpool Clip
36WP3400818 Whirlpool Screw
37Panel, Console
38WP3957823 Whirlpool Knob
39Dial, Timer
40WP3390631 Whirlpool Screw
