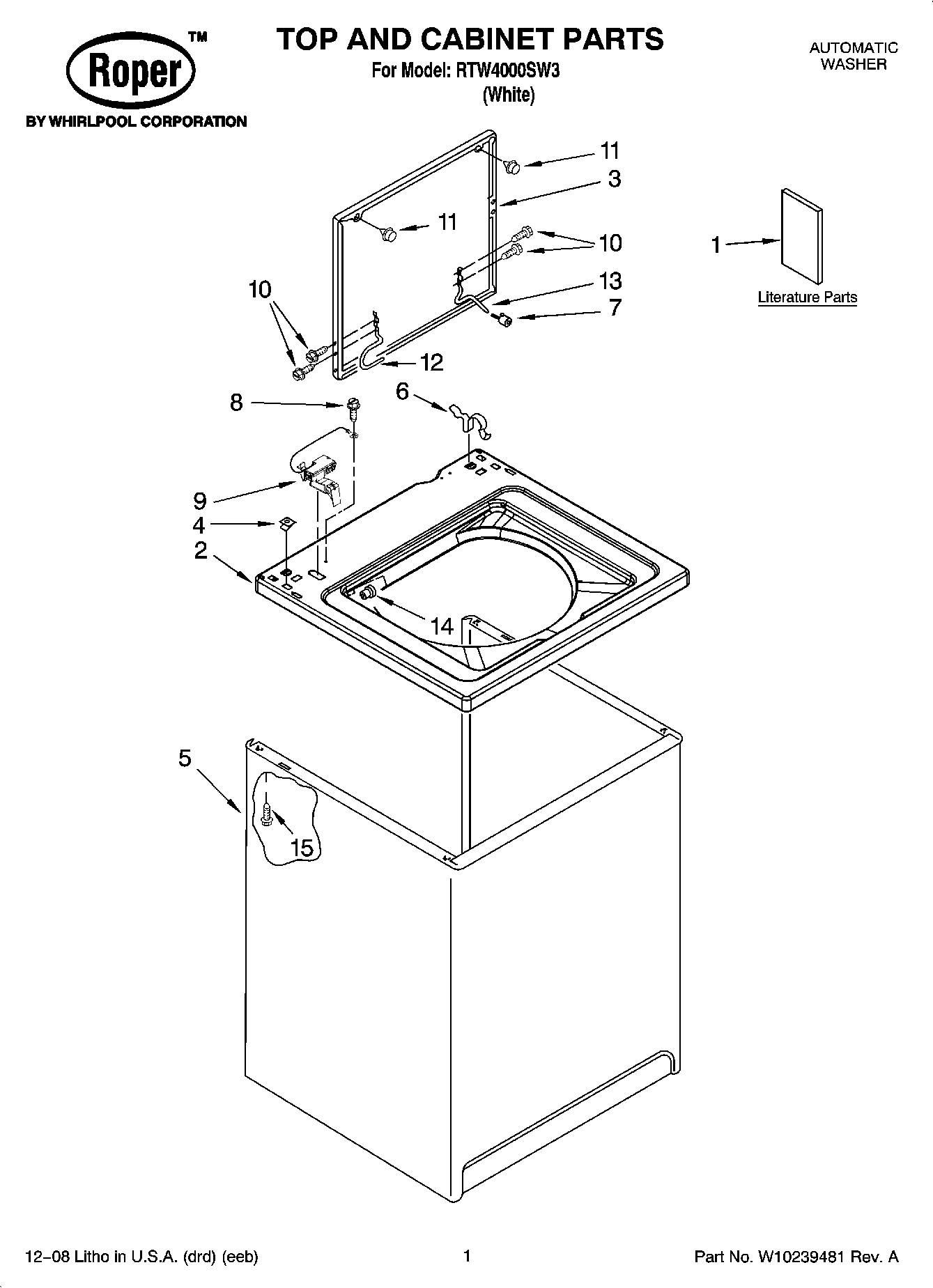

RTW4000SW3 01 – TOP AND CABINET PARTS

RTW4000SW3 01 – TOP AND CABINET PARTS

Written by

in

RTW4000SW3 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1Energy Guide
1USE & CARE GUIDE
2Top
3WPW10193857 Whirlpool Lid Assembly
4WP357213 Whirlpool Hinge Stopper
5Cabinet (White)
6WP62780 Whirlpool Cabinet Clip
7Bumper, Lid Hinge
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10SCREW
11WP9724509 Whirlpool Bumper
12Hinge, Lid (L.H.)
13WP54583 Whirlpool Hinge
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WP3390631 Whirlpool Screw
